Product specifications
2JW1683

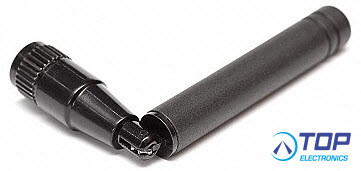

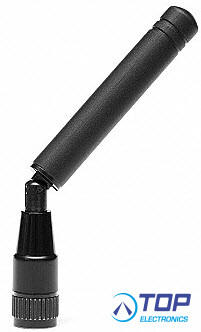

Katana 5GNR/4G LTE/3G/2G Ultra-Wide Band Swivel Connector Antenna
General Specification
Connections: 1
Frequency: 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting: Connector Mount
Dimensions (mm): Ø 10 × 80
Operating temperature: -40 °C to +85 °C
Standard color: Black
Connection 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.3, ~-14.5, ~-4.8, ~-2.5
VSWR: ~3.4:1, ~1.7:1, ~4.4:1, ~7.0:1
Efficiency (%): ~51.3, ~57.0, ~31.3, ~18.0
Peak Gain (dBi): ~0.6, ~2.9, ~0.2, ~-6.0
Impendance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
