Product specifications
WuT 55608
Extent Ethernet with Single Pair Ethernet or other 2-wire

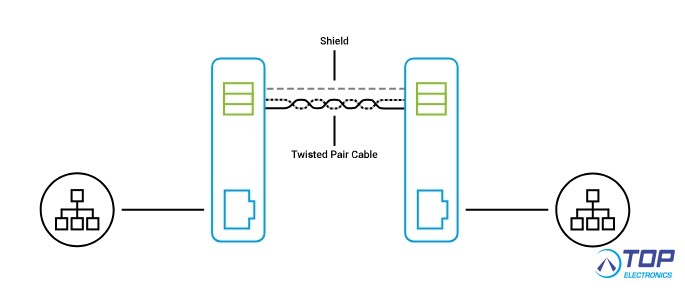

Whether in industry, building automation or in the field of transport technology - the SPE Network Extender enables the connection of any Ethernet devices over long distances using a simple 2-wire cable. The SPE converters work without their own intelligence, thus guaranteeing genuine plug & play operation.
Interfaces:
- 1 x Ethernet 10BaseTE Full Duplex (Auto-Negotiating, Auto-MDIX)
- 1 x Single Pair Ethernet 10BaseT1L Full Duplex (Auto-Negotiating, Auto-MDIX)
Management and connectivity:
- Plug & Play operation
- Optional WLAN enabling for info/debugging
Power supply:
External power
- 24V-48V DC via plug-in screw terminal connection
- Galvanically isolated power connection
Supply voltage via Power-over-Ethernet (PoE)
- Phantom power using data pairs
- Power over unused wire pairs
- PoE Class 1
Standards & more:
Conforms to standards both in office and industrial environments:
- High noise resistance per EN 61000-6-2
- Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee
Connections and displays:
- Ethernet interface: 1x 10BaseTE Full Duplex, RJ45
- Single Pair Ethernet interface:10BaseT1L Full Duplex, 1x 3-pin plug-in screw terminal
- Galvanic isolation: Network connection min. 1500 V
- Supply voltage: Power-over-Ethernet (PoE Class 1) or 24V-48V DC (+/-10%)
- Supply connection: Plug-in screw terminal, 5.08mm spacing, Labeled "L+" and "M"
- Current consumption: max. 75mA @24VDC per device
- Indicators: 1x LED Power, 3x LEDs Error, 1x LED Single Pair Ethernet Status, 1x LED WLAN Status, 2x LEDs Ethernet Network Status
Housing and other data:

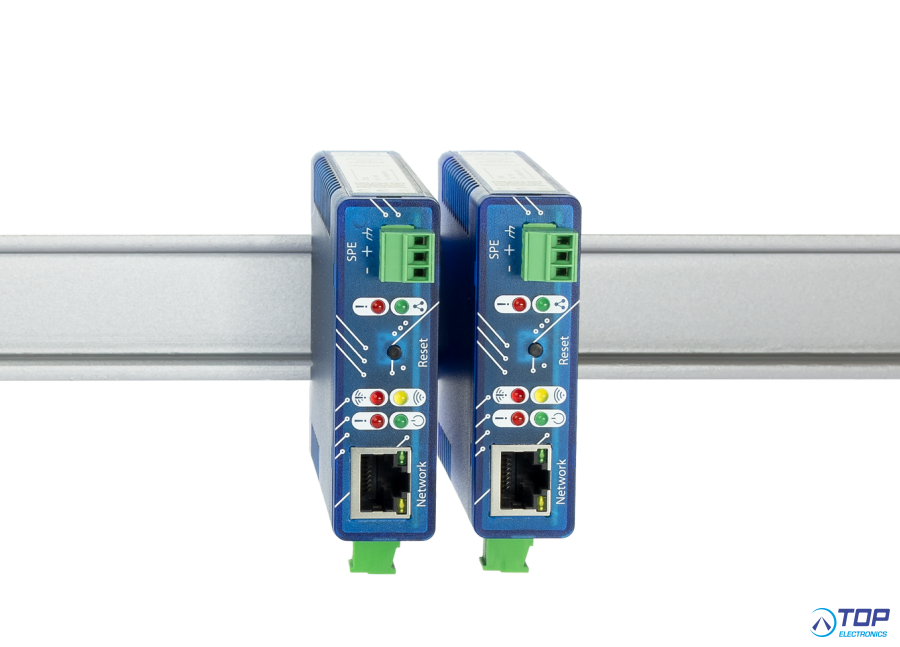

- Housing: Plastic compact housing for top-hat rail mount, 105x22x75mm (LxWxH)
- Enclosure rating: IP20
- Weight: approx. 194g
- Ambient temperature: Storage: -40..+70°C, Operating 0..+50°C
- Permissible relative humidity: 5..95% RH, non-condensing
- Scope of delivery: 2x Network Extender SPE 10BaseTE <> 10BaseT1L, 1x Quick Guide, 1x screwdriver
- Wiesemann & Theis product -
