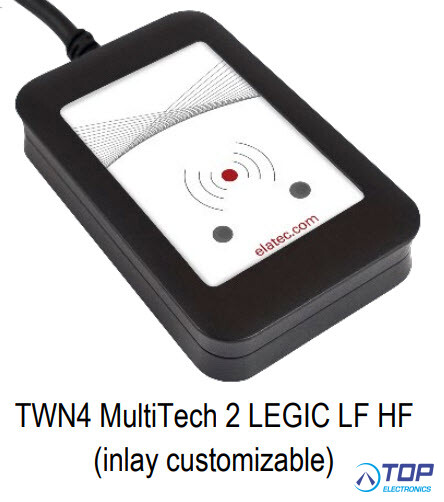

T4BT-FB2BEL2, Multi-freq RFID reader (LF/HF) BLE + NFC

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
T4BT-FB2BEL2
Manufacturer / supplier
Elatec
Datasheet
View datasheet
€ 108.02 excl VAT
Contact us Technical support Quotation request

Product specifications

T4BT-FB2BEL6
Multi-frequency RFID reader (LF/HF) with NFC and BLE support

The TWN4 MultiTech 2 family of contactless RFID readers and modules allows users to read and write to almost any LF and HF tags and labels. All products support NFC and, optionally, Bluetooth Low Energy (BLE). In addition, they are also compatible with the two most commonly used smartphone operating systems, Android and iOS, which gives the option to integrate them in mobile identification applications. The desktop readers are available as Plug & Play devices that can be easily customized (i.e. inlay design), whereas the PCB modules offer a large amount of interfaces and a perfect form factor for an easy and quick integration in any host device. This broad range of product features makes the TWN4 MultiTech 2 family an excellent solution for almost every project. Key features of the TWN4 MultiTech 2 HF desktop reader include a powerful SDK for writing apps that are executed directly on the reader, the possibility to upgrade the firmware in the field, and transparent data exchange with the RFID media. Additionally, the reader can read a lot of HF RFID technologies from the 13.56 MHz frequency band, including NFC. This gives the option to select as many of the technologies required instead of being forced to select just a few ones.

Special features:
+ Possibility to read many HF RFID technologies
+ Cost-optimized reader solution
+ Powerful SDK for writing apps which are executed directly on the reader
+ Firmware update in the field possible
+ On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
+ Supports transparent data exchange with RFID media + CCID and PC/SC 2.01
+ Customizable inlay design

-- Elatec product --
