Product specifications

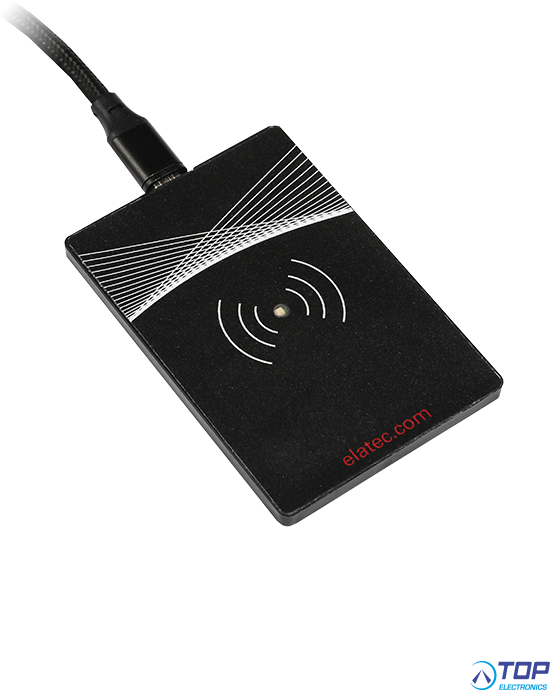

TWN4 Slim MK2 LEGIC
Multi-frequency RFID reader (LF/HF) with NFC and BLE support
Even smaller than an ID-1 card – The RFID readers of the TWN4 Slim family are ELATEC most compact and flat readers. The devices are available with an NXP or LEGIC frontend and support NFC and, optionally, Bluetooth Low Energy (BLE) technologies, which makes the readers an ideal solution for mobile data communication and authentication applications. In addition, they are equipped with a convenient USB interface and, optionally, with mounting holes that enable a quick and easy installation into any industrial application, especially MFP printers. The readers are available as part of a kit with several accessories (e.g. cables, mounting frame or snap-in covers for printers) or as a standalone unit working with a PC or any other device equipped with a USB interface.
Key features of the TWN4 Slim MK2 LEGIC reader include an extremely compact form factor that enables a smooth integration into almost any host system, an optimized design for industrial and secure printing applications, and a powerful SDK for writing apps that are executed directly on the reader. Additionally, the reader can read more than 60 RFID technologies from low (LF) and high frequency (HF) bands, including NFC. This gives the option to select as many of the technologies required instead of being forced to select just a few ones.
Special features:
- Possibility to read more than 60 RFID technologies
- Two RFID frequencies (125 kHz/13.56 MHz), NFC, BLE and LEGIC frontend chip SM-6300 within ELATEC most compact and flat reader
- Optimized design with micro USB connector, special connector for machine integration and optional mounting holes
- Powerful SDK for writing apps which are executed directly on the reader
- Firmware update in the field possible
- On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
- Supports transparent data exchange with RFID media
- CCID and PC/SC 2.01
- Customizable inlay design
