WiFi and Bluetooth® v4.0 Dual Mode USB Module – LM811

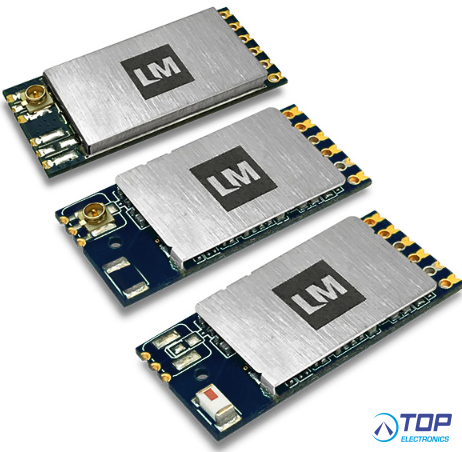

The LM811 combination module offers coexistence for Bluetooth® (Dual Mode) and WiFi operations, allowing the host computer to wirelessly communicate with other Bluetooth® and WiFi enabled devices. This cost effective module saves valuable PCB space within your product. The LM811 module fully supports IEEE 802.11b/g/n/d/e/h/i and Bluetooth® v2.0, v2.1, v3.0 and v4.0 standards.
Compatible with Linux (Kernel v4.3.6), Android 4.4 and Windows XP – 10 platforms.
The LM811 uses Realtek’s 8723BU platform, which enables the 811-0461 HCI Module to be compatible with the latest Android platform, Linux Kernel v4.3.6 and Android 4.4_V2.19.
The LM811 HCI Module also offers low power consumption and an intelligent coexistence mechanism making it ideal for multiple applications, such as tablets equipped with the latest Intel® Bay Trail platform, Smart phones, 2-in-1 detachable/convertible Notebooks and HDMI dongles (TV stick’s).
Features:
- WiFi 802.11 b/g/n
- Bluetooth® v4.0 (Backwards compatible with Bluetooth® v2.0, v2.1 and v3.0)
- WPA, WPA-PSK, WPA2, WPA2 -PSK and WEP (64bit & 128bit) encryption schemes
- Full speed Bluetooth® Piconet and Scatternet supported
- 5V IC Antenna or 3V3 IPEX Connector module options
- USB 2.0
- PCM interface
- Support sophisticated WiFi/Bluetooth® coexistence mechanism to enhance performance
- Support Bluetooth® adaptive power management mechanism
- Linux (Kernel v4.3.6), Android 4.4 and Windows XP – 10 compatible

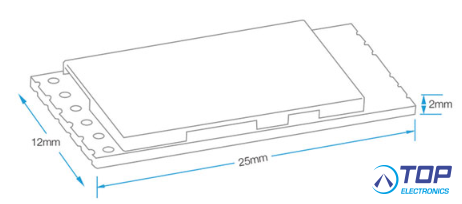

- 25mm x 12mm x 2mm
- RoHS, REACH and WEEE
Available versions:
5V
LM811-0452 ETSI - 5V Module with IC Antenna (pcs)
LM811-0452 US - 5V Module with IC Antenna (pcs)
LM811-0450 ETSI - 5V Module with IC Antenna (tray)
LM811-0450 US - 5V Module with IC Antenna (tray)
LM811-0455 ETSI - 5V Module with IC Antenna (T&R)
LM811-0455 US - 5V Module with IC Antenna (T&R)
LM811-0451 ETSI - 5V Module with IPEX Connector (pcs)
LM811-0451 US - 5V Module with IPEX Connector (pcs)
LM811-0453 ETSI - 5V Module with IPEX Connector (tray)
LM811-0453 US - 5V Module with IPEX Connector (tray)
LM811-0454 ETSI - 5V Module with IPEX Connector (T&R)
LM811-0454 US - 5V Module with IPEX Connector (T&R)
3.3V
LM811-0471 ETSI - 3.3V Module with IPEX Connector (pcs)
LM811-0471 US - 3.3V Module with IPEX Connector (pcs)
LM811-0461 ETSI - 3.3V Module with IPEX Connector (tray)
LM811-0461 US - 3.3V Module with IPEX Connector (tray)
LM811-0467 ETSI - 3.3V Module with IPEX Connector (T&R)
LM811-0467 US - 3.3V Module with IPEX Connector (T&R)
- LM Technologies product -
