Product specifications
WuT 55411

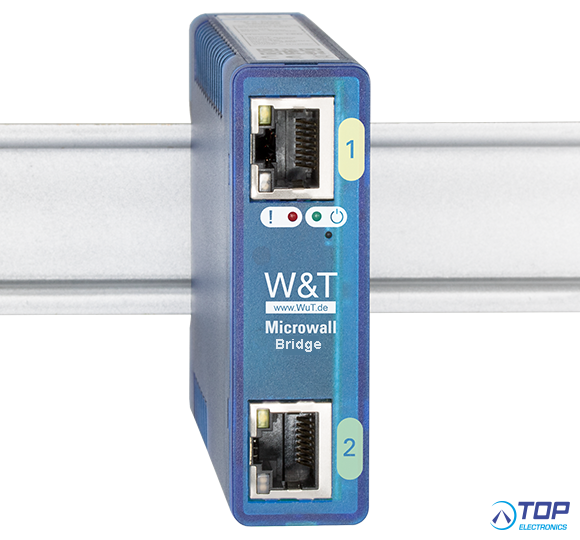

Microwall Bridge
Protecting machines and equipment - without changing the IP setup
Segmenting network and isolating of sensitive network areas is one of the basic measures in virtually any IP security concept for protecting industrial environments. With the Microwall Bridge this can be done IP-transparently while the network configuration including routing of all involved components remains unchanged. Whitelist-based and using simple and intuitive filtering rules on the TCP/UDP/IP level only the explicitly desired communication between the island and the surrounding network is enabled. The protocol-transparent operation makes the Microwall Bridge especially suitable for post-segmenting of already existing network environments.
Interfaces:
- 2x Ethernet 100/1000BaseT
Connectivity:
- Implementation as bridge
- Consistent whitelist-based firewall concept
- Logging
Management & Security:
- Secure firmware concept with Secure Boot
- Configuration via HTTPS-Only Mode
- Port management for all local services
- Network management systems
Power supply:
External power: Screw terminals, 12V-48V DC - Power-over-Ethernet (PoE)
Standards & more:
- Conforms to standards both in office and industrial environments: High noise resistance per EN 61000-6-2, Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
- 5 year guarantee
Connections and displays:
Network: 2x 100/1000BaseT Autosensing/Auto-MDIX, RJ45, IPv6 on request
Data throughput: max. 900MBit/s
Galvanic isolation: Network connections min. 1500 V
Supply voltage: Power-over-Ethernet (PoE) or DC 24V .. 48V (+/-10%)
Supply connection: Plug-in screw terminal, 5.08mm spacing, Labeled "L+" and "M"
Current consumption: PoE Class 2 (3.84 W to 6.49 W) or for external supply: typ. 150mA @24V DC, max. 200mA @24VDC
Indicators: 2x LEDs for network status, 1x LED for Error
Housing and other data:
Housing: Plastic compact housing for top-hat rail mount, 105x22x75mm (LxWxH)
Enclosure rating: IP20
Weight: approx. 120g
Ambient temperature: Storage: -40..+85°C, Operating 0..+50°C (no stack mounting)
Permissible relative humidity: 5..95% RH, non-condensing
Scope of delivery: 1x Microwall Bridge, 1x Quick Guide
**Please order power supplies as separate accessories**
- Wiesemann & Theis product -
