Product specifications
ERF4045

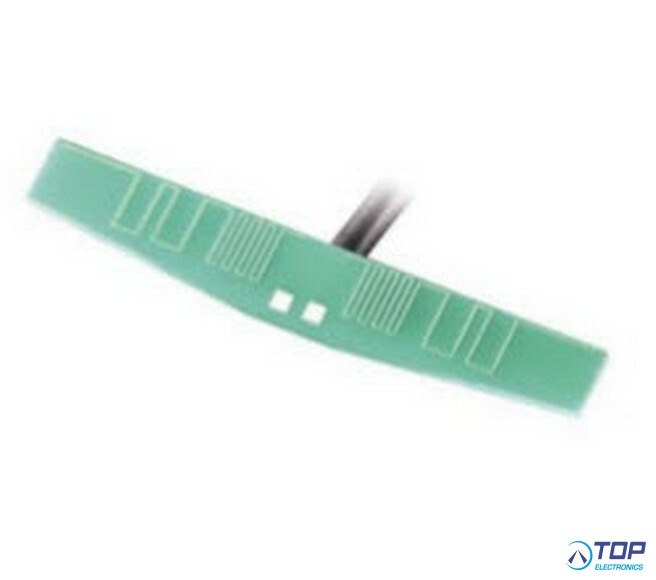

The ERF4045 Antenna is an internal antenna with a U.FL connector.
It has a frequency range of 824 ~ 960 MHz / 1710 ~ 1990 MHz.
The design enables the antenna to be easily integrated and the adhesive patch allows for easy placement.
The antenna can be used for applications , such as M2M applications , IoT, LTE applications and GSM.
Electrical Properties
Frequency Band: 824 ~ 960 / 1710 ~ 1990 MHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <3.0
Gain: 2dBi
Mechanical Properties
Antenna Type: Internal Antenna
Connector Type:U.FL
PCB Dimensions: 47 * 7,6 * 1,2 mm
Mounting Method: Adhesive
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
