Product specifications
ERF4106

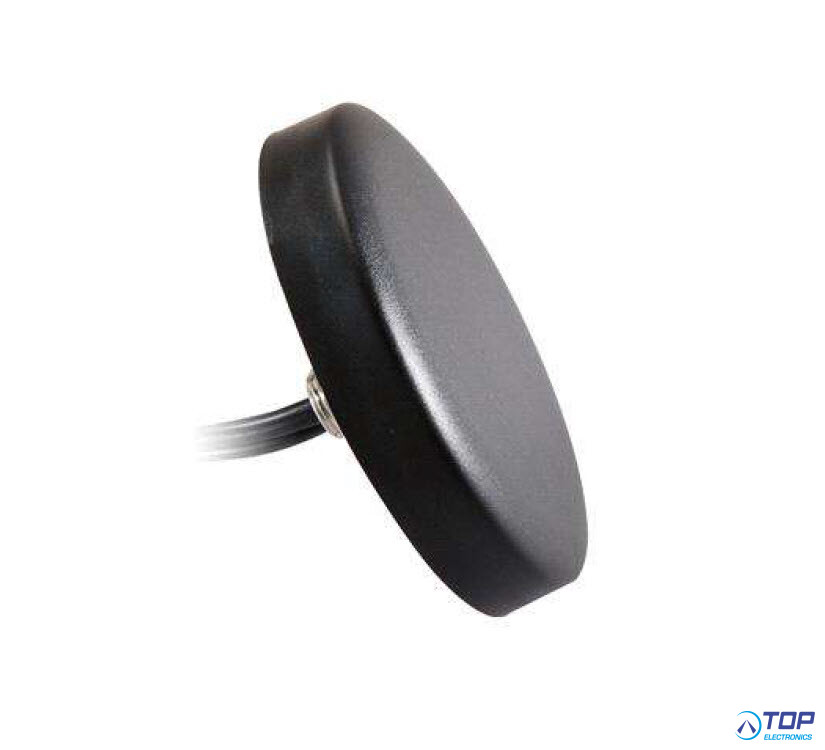

The ERF4106 antenna is Combi “Puck” antenna antenna with a M12 mounting , 3m cable and 3 SMA Male connectors.
Each SMA Male connector has a dedicated supported frequency, either being LTE, GPS or Wi-Fi, so please take care
when mounting.
The antenna can be used for applications such as, M2M, cellular, Wi-Fi, Bluetooth, GNSS/GPS an many more.
Electrical Properties
GPS
Dielectric Antenna
Center Frequency: 1575.42 ± 3 MHz
Band Width: CF± 5 MHz
Nominal Impedance: 50 O
Polarization: RHCP
V.S.W.R. < 1.5
Gain: 2 dBic (Zenith)
Axial Ratio: 3dB (max)
LNA
Gain: 28 ± 2dB
Noise Figure: < 1.5dB
VSWR: < 2.0
Supply Voltage: 2.2 ~ 5V DC
Current Consumption: <15mA
LTE
Frequency Band: 698 ~ 960 / 1710 ~ 2690 MHz
Polarization: Linear
Gain: 2.0 dBi
V.S.W.R. < 2.0
Nominal Impedance: 50 O
Wi-Fi
Frequency Band: 2400 ~ 2483.5 / 4900 ~ 5825 MHz
Polarization: Linear
Gain: 2 dBi
V.S.W.R. < 2.0
Nominal Impedance: 50 O
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type (M12 mounting) , and adhesive tape
Connector Type: 3x SMA (Male)
Antenna Dimensions: 81.3 ø mm ± 1
Antenna Color: Black
Cable Length: 300 cm ± 0.5
Cable Type: RG174
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
Ingress Protection: IP65 ~ IP66 (excluse cable outlet)
