Product specifications
ERF4060

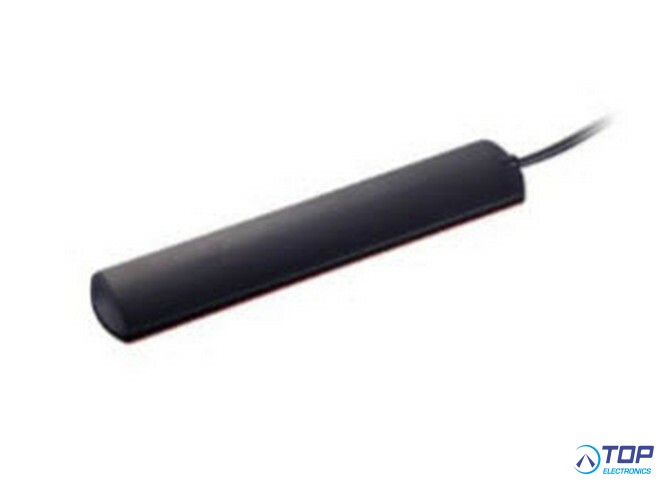

The ERF4060 antenna is a antenna a U.FL connector. The antenna can be used in the frequency range of 640 MHz to 4000 MHz.
The antenna can be used for applications , M2M , 4G/3G/2G , Wifi, LTE and many more.
Electrical Properties
Frequency Band: 600 ~ 4000 MHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <2.0
Gain: 2dBi
Mechanical Properties
Antenna Type: External Antenna
Touch Type: Adhesive
Connector Type: U.FL
Antenna Dimensions: 115.6 * 21.7 * 5.8 mm ± 0.2
Antenna Color: Black
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
