Product specifications
2JW1024

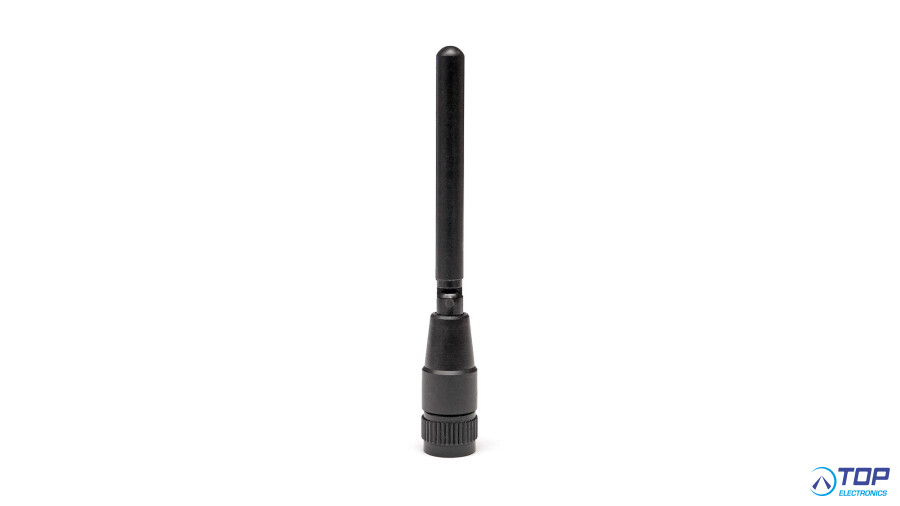

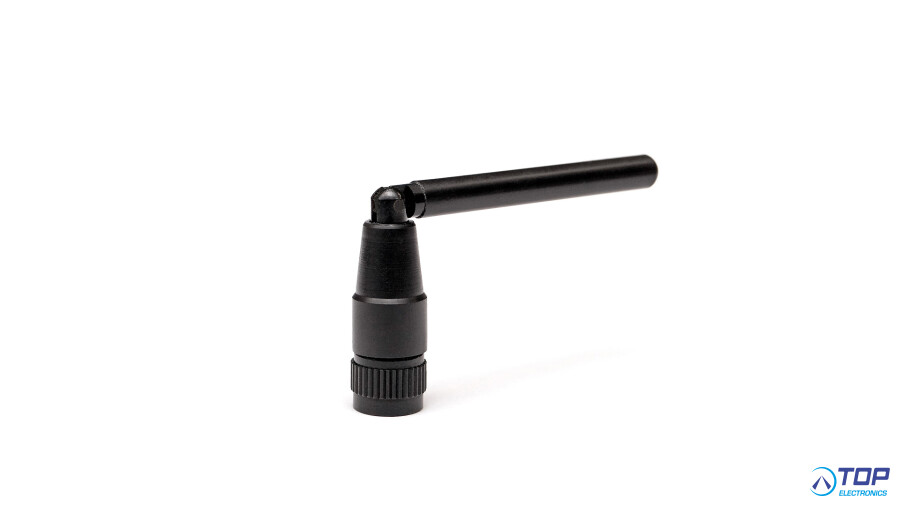

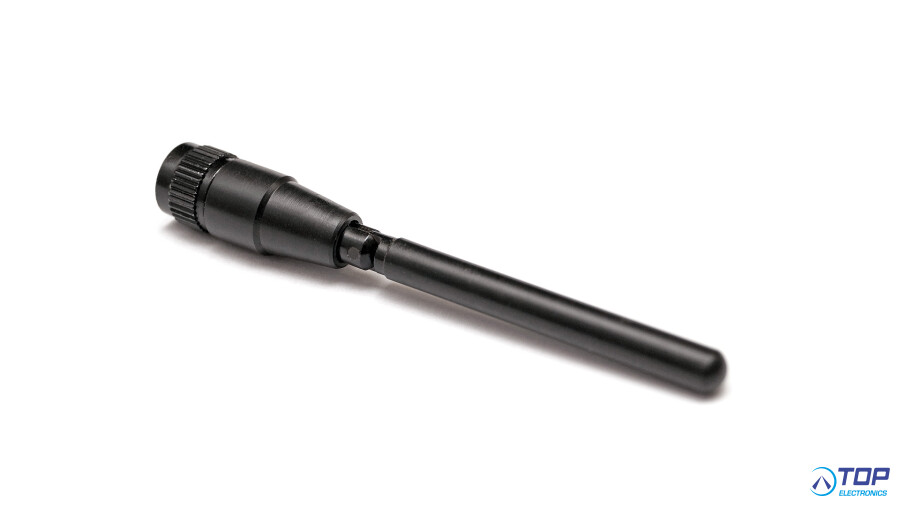

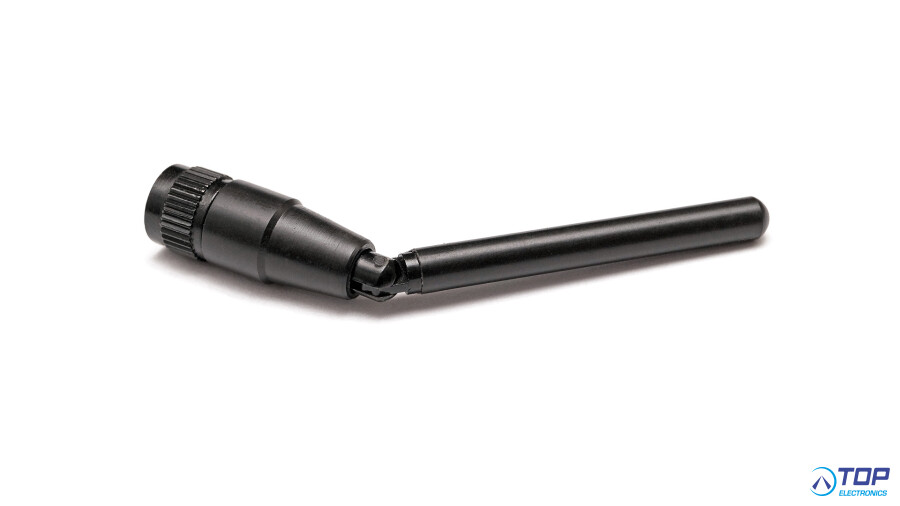

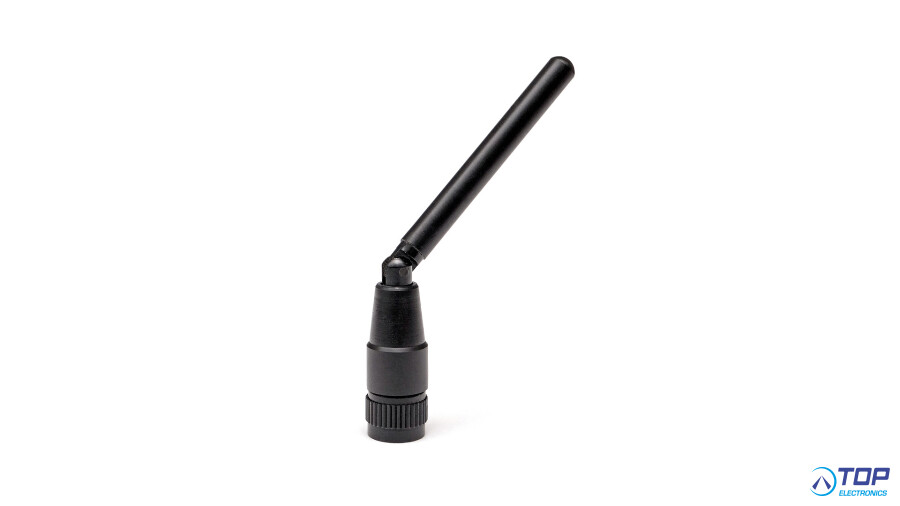

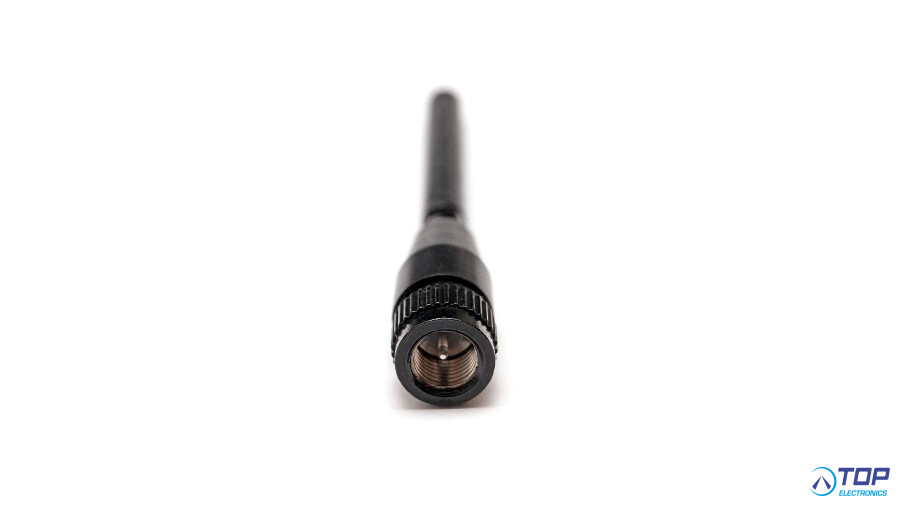

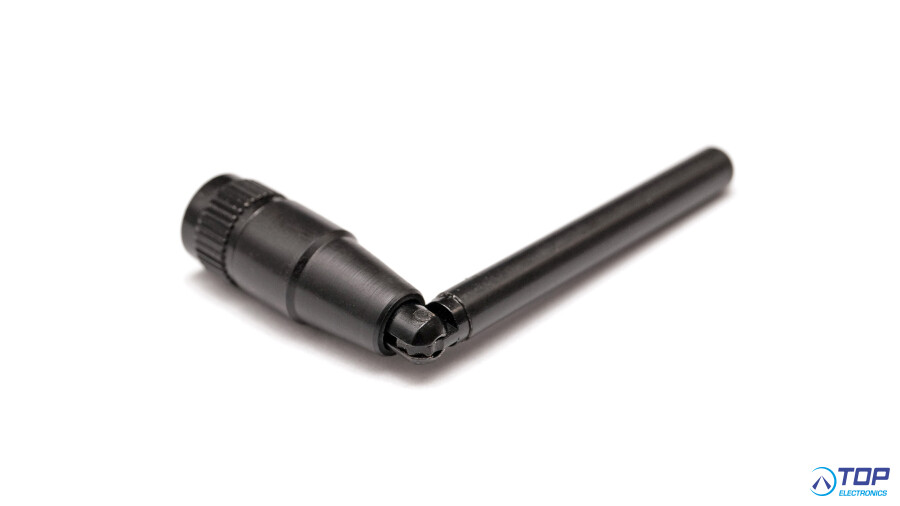

4G LTE/3G/2G Low Profile High Efficiency Antenna
General Specification
Frequency: 4GLTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting: Connector Mount
Dimensions (mm): Ø 10 × 71
Operating temperature: -20 °C to +65 °C
Standard colors: Black / White
Antenna and electrical specifications
Cellular/4G LTE
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~3.1:1, ~1.7:1, ~1.5:1
Efficiency (%): ~58, ~67, ~74
Peak Gain (dBi): ~0.1, ~2.9, ~4.6
Impedance: 50
Polarisation: Linear
Max. Input Power (W): 10
