Product specifications
ERF4075

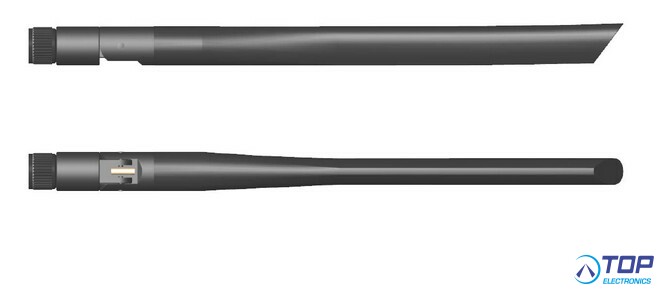

The ERF4075 Antenna is a LTE antenna with an SMA male connector.
The hinged design enables the antenna to be positioned at its most suitable angle with a maximum of 90°.
The antenna can be used for applications , such as M2M, IoT, LTE & more.
Electrical Properties
Frequency Band: 1800 / 1900 / 2100 / 2200 / 2440 / 3200 / 3500 / 3900MHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <2.5
Gain: 3dBi
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA male
Antenna Length: 198 mm ±2
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
