Product specifications
2JE20

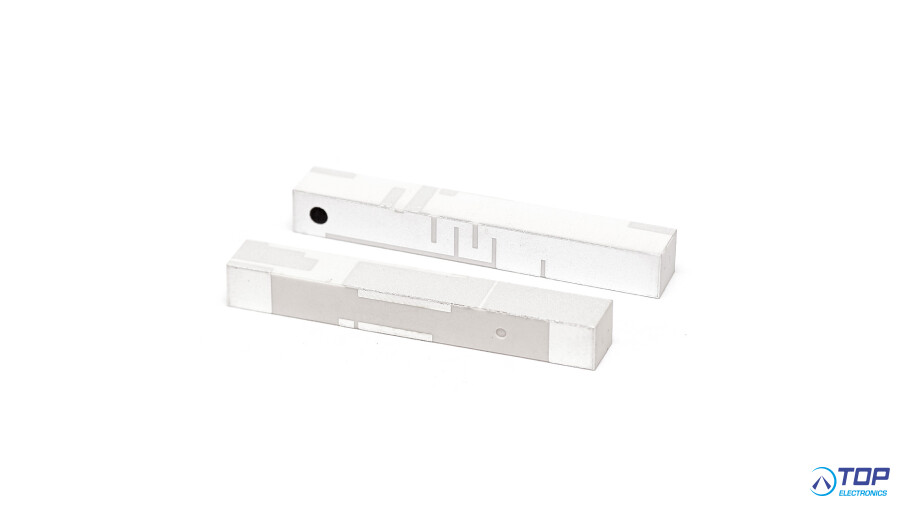

Cellular / 4G LTE Surface Mount Ceramic 35 x 5 x 4mm Antenna
General Specification
Frequency: 4GLTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting: Surface Mount Ceramic
Dimensions (mm): 35 x 5 x 4
Operating temperature: -40 °C to +85 °C
Antenna and electrical specifications
Cellular/4G LTE
Standards: 2G,3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700
VSWR: ~3.0:1, ~3.0:1, ~1.4:1
Efficiency (%): ~43.1, ~53.7, ~72.6
Peak Gain (dBi): ~0.3, ~3.0, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
