Product specifications
2J6926B

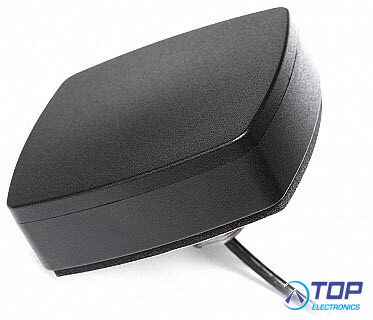

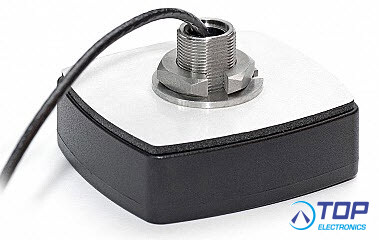

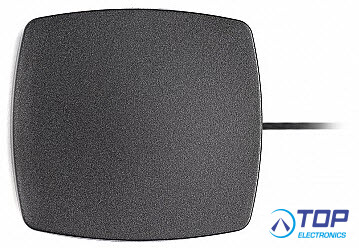

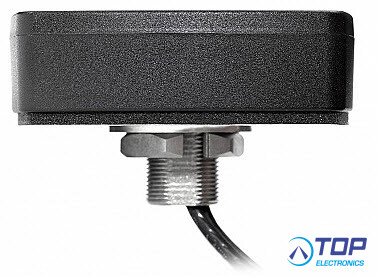

Iridium, IP67, IP69 Ground Plane Independent Antenna
General Specification
Connections: 1
Frequency: IRIDIUM
Mounting: Screw Mount
Dimensions (mm): 80 X 76 X 25.6
Operating temperature: -40 °C to +85 °C
Certificates: IP67, IP69
Standard color: Black and White
Connection 1
IRIDIUM
Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~4.5
Efficiency (%) ~76.6
Radiation Pattern Hemispherical
Polarization RHCP
