Product specifications
ProAnt 378

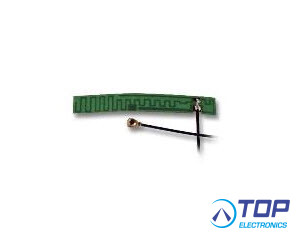

Inside™ GSM/868 Flex MHz Internally-Mounted Antenna
Antenna covering GSM 850 (824-894 MHz) and GSM 1900 (1710-1990 MHz) for inside mounting on non-conductive surfaces such as plastic and the antenna includes adhesives for attaching.
InSide GSM is a ground plane independent antenna including coaxial cable with U.FL or MMCX connector and are supplied with or without adhesive. The antenna might need to be retuned to give optimum performance.
Applications
- M2M-communications
- Telemetric
- Automated Meter Reading
- Alarms
Technical data
- Frequency 868-960 and 1710-1990 MHz
- VSWR < 4:1 (on ProAnt demo box)
- Gain Max 3 dBi
- Dimension 8 x 56 mm thickness 0.2 mm
- Mounting Adhesive tape
- Interface MHF (U.FL) on 100 mm cable (other options upon request)
- Temperature -30 to +85 °C
- ProAnt AB product -
