MN5375V2, Inpixon nanoPAN V2

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
MN5375V2
Manufacturer / supplier
Inpixon & Nanotron Technologies
Standard Package: 500pcs
€ 49.60 excl VAT
Quantity
Unit price
From 10 pcs€ 46.55
From 25 pcs€ 45.02
From 100 pcs€ 38.92
From 250 pcs€ 34.72

Product specifications

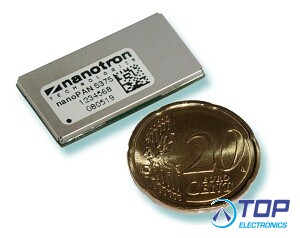

nanoPAN 5375 RF Module; MN5375V2
High Performance 2.4 GHz Transceiver Location Awareness in Combination with Wireless Communication

Complete RF Subsystem
Nanotron provides robust wireless technology for Loss Protection Solutions with two or more radio nodes. The nanoPAN 5375 RF Module is the ideal platform for getting to market quickly. Small form factor – At only 29 mm by 15 mm and less than 4 mm thick, this RF module includes the nanoLOC TRX Transceiver and required circuitry, a +20 dBm power amplifier, as well as a balun, a band pass filter, and clock crystals. Connect this module to almost any microcontroller using its SPI interface to form a complete subsystem with only very few external components.

Several power and transmission modes – including:
HC Ranging (high-capacity ranging with communication) provides 80 MHz bandwidth and 1 Mbps data rate
LD Ranging (long-distance ranging with communication) provides 80 MHz bandwidth and 250 kbps data rate
R Comm (robust communication-only) provides 22 MHz bandwidth and 250 kbps data rate

Speed up time to market – Software support for the nanoPAN 5375 RF Module combines the basic ranging and communication functionality with user accessible application elements. Sample code is provided to accelerate the overall software production process.

Key Features*
Data rates ..................................250 kbps, 1 Mbps
Ambient temperature range..............-40 to +70 °C
Supply voltage..............................2.5 ± 0.2 V
TX current...................................typ. 210 mA
HC Ranging (80 MHz, 1 Mbps)
RX sensitivity ...............................typ. -89 dBm
RX current...................................typ. 51 mA
TX output power ...........................typ. +20 dBm
TX power range ............................typ. 35 dB
LD Ranging (80 MHz, 250 kbps)
RX sensitivity ...............................typ. -95 dBm
RX current...................................typ. 69 mA
TX output power ...........................typ. +20 dBm
TX power range ............................typ. 35 dB
R Comm (22 MHz, 250 kbps)
RX sensitivity ...............................typ. -96 dBm
RX current...................................typ. 34 mA
TX output power ...........................typ. +20 dBm
TX power range ............................typ. 35 dB
Antenna load impedance..................nom. 50 Ω
SPI clock frequency........................up to 24 Mbps
Real Time Clock frequency ...............32.768 kHz
Hardware accelerated encryption.......128 bit
Certifications................................FCC (ETSI in progress)

Communication with the external microcontroller is performed on the interface SPI.
To work with the module you need to purchase a software package "nanoPAN 5375 driver software, SNDLA200L".

-- nanotron Technologies product --
