Product specifications
ERF4047

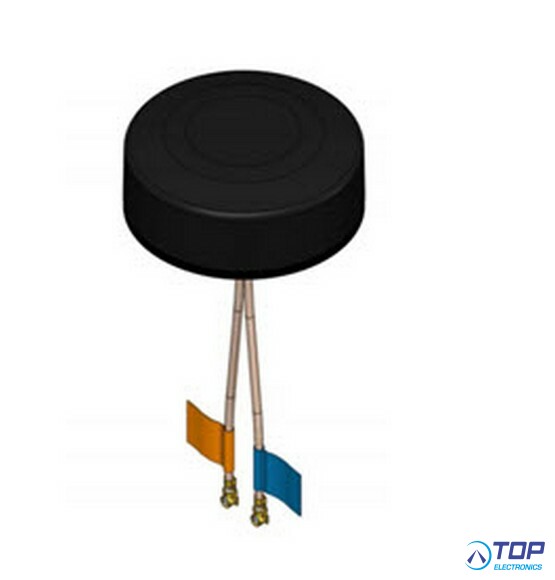

The ERF4047 antenna is an external GSM and GPS antenna with a SMA-M connector(2x).
The antenna can be used for applications such as, GSM, M2M, 2G/3G/4G and GPS/GLONASS.
Electrical Properties
Parameter: Description
Frequency Band: GSM / UMTS & GPS
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 2.0
Gain: 2 dBi
Mechanical Properties
Parameter: Description
Antenna Type: External Antenna
Connector Type: SMA-M (2x)
Antenna Dimensions: 46,6 mm
Antenna Color: Black
Cable Length: 600 cm
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
