Product specifications
ERF4076

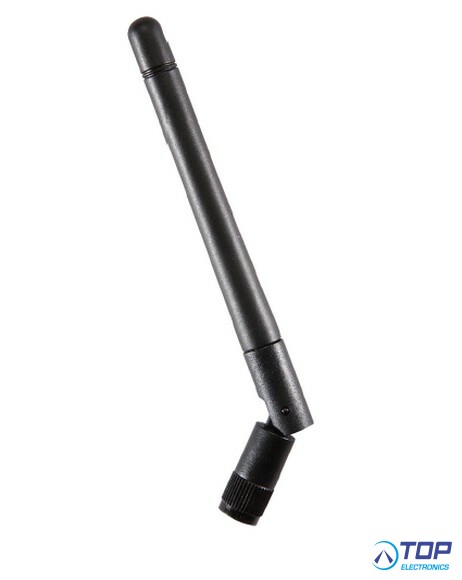

The ERF4076 Antenna is a GSM antenna with an SMA male connector.
The hinged design enables the antenna to be positioned at its most suitable angle with a maximum of 90°.
The antenna can be used for applications such as M2M, IoT, LTE & more.
Electrical Properties
Frequency Band: 710 ~ 890 / 1800 / 1828 ~ 1944 MHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <2.5
Gain: 2dBi
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA male
Antenna Length: 108.5 mm ±0.2
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
