Product specifications
ERF4055

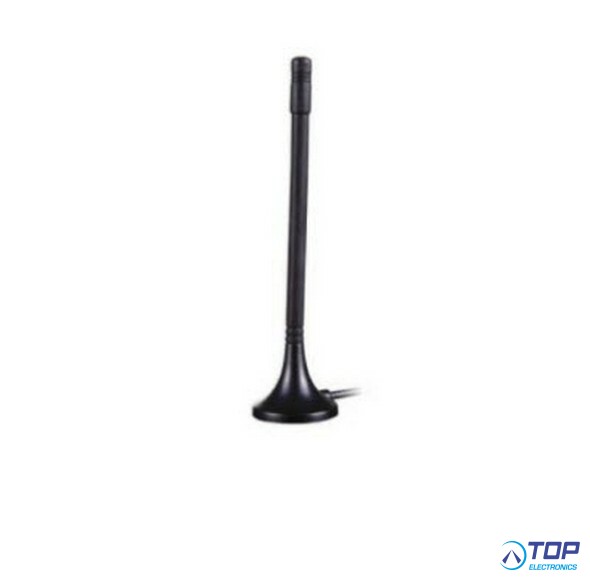

The ERF4055 antenna is a GSM antenna with an SMA Male connector.
The antenna can also be used in these frequency bands: 490~520 MHz / 800 ~ 1020 MHz / 1450 ~ 4000 MHz.
The antenna can be used for applications such as GSM, 4G/3G/2G, Wifi, Zigbee, UMTS, LTE and more.
Electrical Properties
Frequency Band: 490 ~ 520 / 800 ~ 1020 / 1450 ~ 4000 MHz
Nominal Impedance: 50 Ω
Polarization: Vertical
V.S.W.R: <2.0
Antenna Gain: 3dBi
Mechanical Properties
Antenna Type: External Antenna
Touch Type: Magnet
Connector Type: SMA Male
Cable Length; 3m
Antenna Dimensions: 121.0 mm ± 1
Antenna Color: Black
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
