Product specifications
ERF4032

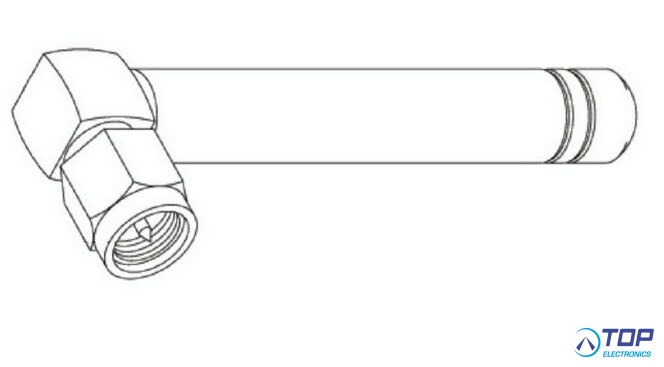

The ERF4032 is a GSM antenna with SMA male connector.
The antenna can also be used in the 868MHz frequency band.
The antenna can be used for applications such as, M2M, GSM/GPRS, LoRa and Zigbee.
Electrical Properties
Frequency Band: 800 / 868 / 900 / 1800 / 2100 MHz
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 3.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA Male
Antenna Dimensions: 53.5 mm ±0.5
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
