Product specifications
ERF4038

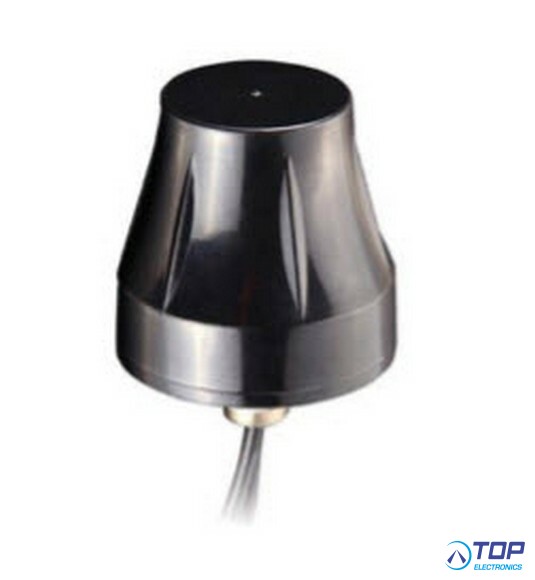

The ERF4038 Antenna is a GPS/GLONASS and 4G antenna with 2 SMA (Male) connectors, 1 for GPS/GLONASS and 1 for 4G.
The attached cable is a high quality coaxial cable (RG-174U).
The antenna can be used for applications such as M2M , GPS/GLONASS, GSM and 4G.
Electrical Properties
Frequency Band: GPS/GLONASS & 4G
Nominal Impedance: 50 Ω
Polarization: Linear
Gain: 2dBi
V.S.W.R: <2.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA Male (2x)
Cable Length: 300cm ± 1
Cable Type: RG174
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
