Product specifications
2JM0301GF

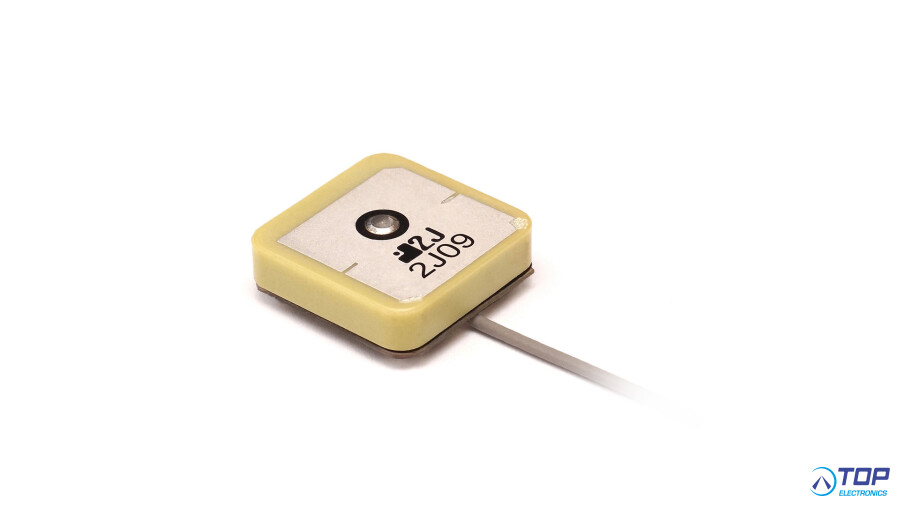

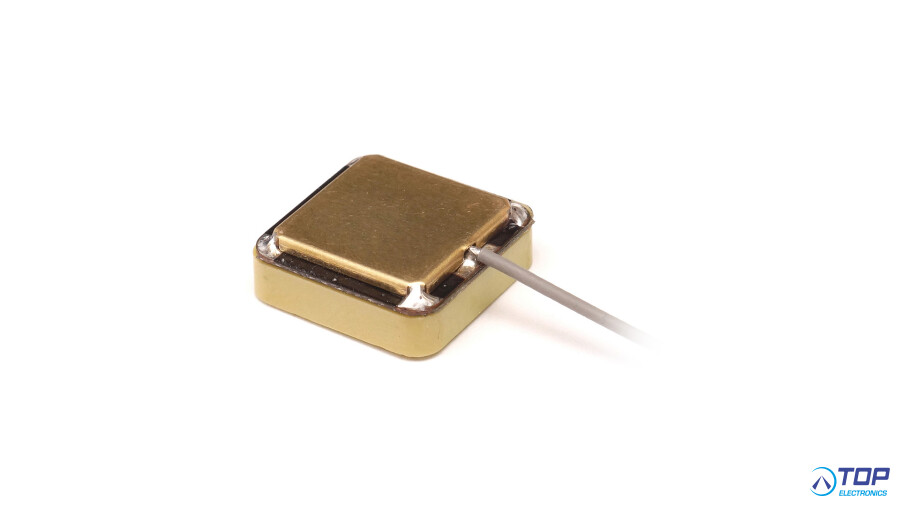

GPS/GLONASS/Galileo 1575-1606 MHz Pre-Filter Embedded Antenna
General Specification
Frequency: GPS/GLO/QZSS/Galileo/L1
Mounting: Snap-in Mount Module
Dimensions (mm): 18 x 18 x 6.8
Operating temperature: -40 °C to +85 °C
GPS/GLONASS - Ceramic Active Antenna
Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606
Passive Gain (dBi): ~3.6
Impendance (Ohm): 50
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 14 @ 2.7 V
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 4 @ 2.7 V
Power Consumption (mW): 10.8 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
