Product specifications
2J4301MPGF

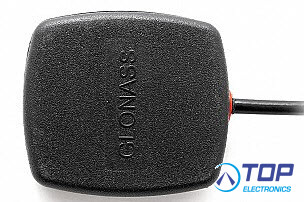

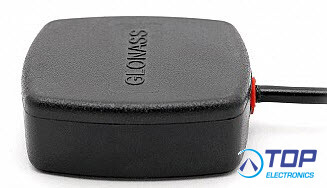

GPS/GLONASS/Galileo Adhesive Magnetic Mount Antenna
General specification
Connections: 1
Frequency: GPS/GLO/QZSS/Galileo/L1
Mounting: Magnetic/Adhesive Mount, Adhesive Mount, Magnetic Mount
Dimensions (mm): 38 x 34 x 13.5/14.5
Operating temperature: -40 °C to +85 °C
Certificates: IP67
Standard colors: Black
CONNECTION 1
GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Voltage (V): 1.5 – 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
Saw Filter Type: Pre-Filter
ESD Protection (kV): 2
