Product specifications
ERF4011

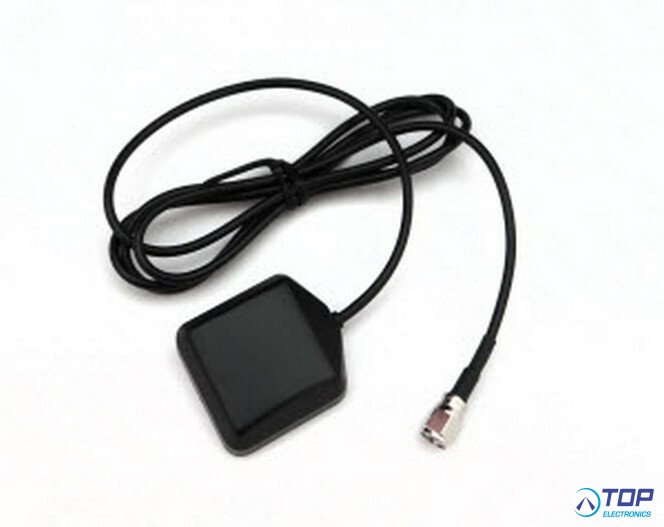

The ERF4011 Antenna is a GPS antenna with a RG174 cable attached and SMA (Male) connector.
The RG174 cable enables it to be placed and positioned at its most suitable position. The RG174 cable has a total
length of ± 1 meter. The antenna can be used for applications , such as GPS and GLONASS.
Electrical Properties
Frequency Band: GPS/GLONASS
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 3.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA Male
Cable Type: RG174
Cable Length: 100 cm ±0.1
Antenna Dimensions: 34.3 * 39.4 * 12.6 mm
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
