Product specifications
YFGN000H1AC

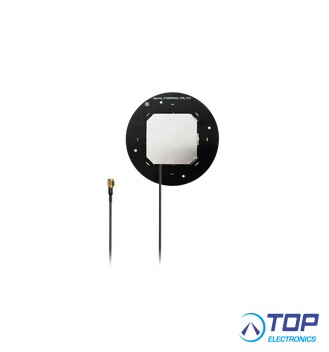

Active GNSS full band screw mount air dielectric + cable embedded antenna
Multi-GNSS support: Covers all major global navigation systems, including BDS-3 (B1C) and QZSS, ensuring compatibility worldwide.
High-gain LNA: Delivers 35 ±4dB gain with a low noise figure (≤ 4dB), ideal for weak-signal environments like urban canyons or dense foliage.
Superior RF performance: Features RHCP polarization, directional radiation pattern, and outstanding peak gain (up to 5.7dBi) for reliable signal acquisition.
Robust design: Φ 122mm × 22.5mm housing with screw mounting, suitable for vehicular or fixed installations.
Environmental resilience: Operates in -40°C to +85°C temperatures and complies with RoHS/REACH standards.
Target applications:
- Autonomous vehicles: provides centimeter-level accuracy for ADAS and navigation
- Geodetic surveying: supports RTK/PPK systems with multi-frequency compatibility
- Maritime: ensures reliable positioning for vessels with L-Band support
- Telematics and fleet management: enables real-time tracking for logistics and heavy equipment
Key Features;
- Optimized for GNSS L1/L5
- SMA male connector
- RG174 cable
- Screw mount
- Low VSWR and high efficiency minimize signal loss
- Low axial ratio ensures consistent circular polarization for precision applications
- 3D radiation pattern optimization for stable performance across elevations
Summary:
- Frequency band: 1164–1300MHz, 1525–1606MHz
- Φ 122mm × 22.5mm
- LNA gain: 35 ±4dB
- Efficiency: up to 65.6%
- Operating temperature: -40°C to +85°C
- RoHS and REACH compliant
- Quectel Wireless Solutions product -
