Product specifications
WuT 50543

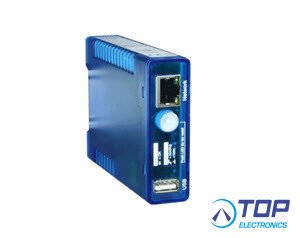

FTP Data Station 3
The FTP Data Station 3 offers the functionality of an FTP(S), a TFTP and a Samba server in a compact package. Use these ways to access the internal Box memory or to directly access a memory device connected via USB.
Example applications:
You have several Web-Thermometers (e.g. Web Thermometer Pt100/Pt1000) in your network and want to archive their measurement values centrally. To do this, configure regular sending of the current measurement values for each Thermograph via FTP. Specify your SD Data Station as the FTP server. In this way you can create central measurement data archives in the internal memory of the Box or on the SD card. This archive is then available at any time for further processing.
In "Data Filling Station" mode files saved on the Box can be moved to an inserted SD card by pressing a key. Use this function for example to retrieve measurement archives from mobile equipment at regular intervals without a network connection.
Interfaces:
-Network
-USB
Management and connectivity:
-Configuration
-Startup using WuTility (three clicks and you’re done)
-DHCP
-Web-based management
-Data transport
-FTP(S)
-TFTP
-SMB (Samba)
Power supply:
-External
-Screw terminal
-Power-over-Ethernet (PoE)
-Phantom power using data pairs
-Power over unused wire pairs
-Buffer capacitors
-controlled shutdown when disconnecting from the power supply
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Connections and displays:
- Network: 10/100BaseT Autosensing/Auto-MDIX, RJ45
- Galvanic isolation: Network connection min. 1500 V
- USB: USB 2.0
- Power supply: Power-over-Ethernet (PoE) or DC 24V .. 48V (+/-10%)
- Supply connection: Plug-in screw terminal, 5.08mm spacing
- Current consumption: PoE Class 1 (0.44 - 3.84W) and typ. 100mA @ 24V DC with external supply
- Indicators and buttons: System status using multi-color LED, Network speed and data transfer, Manual device reset and ejecting of the USB storage medium
Hard- and software:
- Memory: Internal: 750 MB, External: unpartitioned USB storage media
- Installed software: FTP server: ProFTPD v1.3.6, SMB server: Samba v3.6.25
Housing and other data:
- Housing: Plastic housing with integrated DIN rail mount, 105 x 22 x 75mm (L x W x H)
- Enclosure rating: IP20
- Weight: approx. 100g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+65°C (adjacent installation), 0..+70°C (non-adjacent installation)
- Permissible relative humidity: 5 ... 95% relative humidity, non-condensing
- Scope of delivery: FTP Data Station 3, Quick start manual, Product CD with WuTility management tool and manual
- Wiesemann & Theis product -
