RMU500-EK, EVB KIT for 5G RM500xx - With Module

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
RMU500-EK
Manufacturer / supplier
Quectel Wireless Solutions
Frequenty band
B1/3/5/7/8/20@FDD-LTE, B1/5/8@WCDMA, 850/900/1800/1900@GSM
€ 505.41 excl VAT
Contact us Technical support Quotation request
RMU500-EK_User_Guide_V1.0.pdf

Product specifications

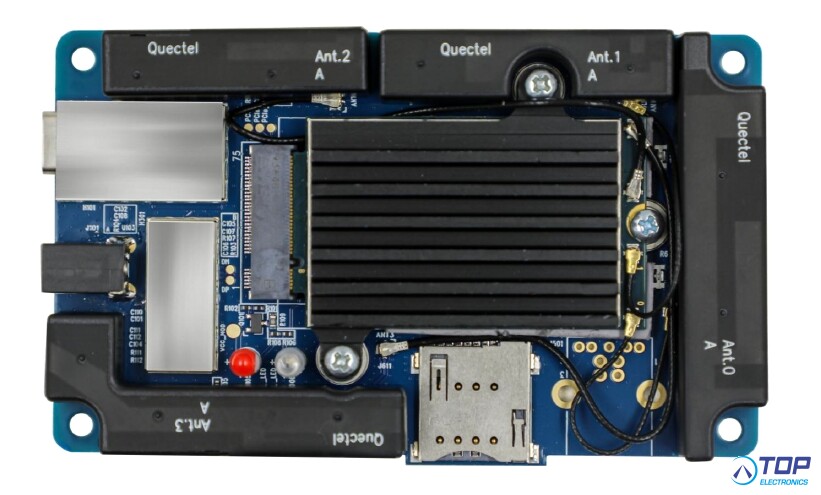

RMU500Q EVB KIT (RM500Q-GL Module included)

Evaluation KIT for 5G RM500Q-GL module

Quectel supplies RMU500-EK for designers to develop applications based on RM500Q-GL module and to test basic functionalities of it.

KEY FEATURES
- Power Supply: DC supply: +5 V/ 2.5 A for the EVB
- M.2 Interface: Support RM500Q-GL
- (U)SIM Interface: Support (U)SIM card: 2.95/1.8 V
- USB Interface: USB 3.1 & USB 2.0
- Status Indication: 2 LEDs available for signal indication
- Physical Characteristics: Size: 100 mm × 60 mm

MODULE INCLUDED
- RM500Q-GL

Quectel RM500Q-GL is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel. 15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM500Q-GL is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12 and Cat 20 module EM20, which will facilitate customers to migrate from LTE-A to 5G.

The global version RM500Q-GL nearly covers all the mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

- Quectel Wireless Solutions product -
