Product specifications
Evaluation board for the GSUB-0002

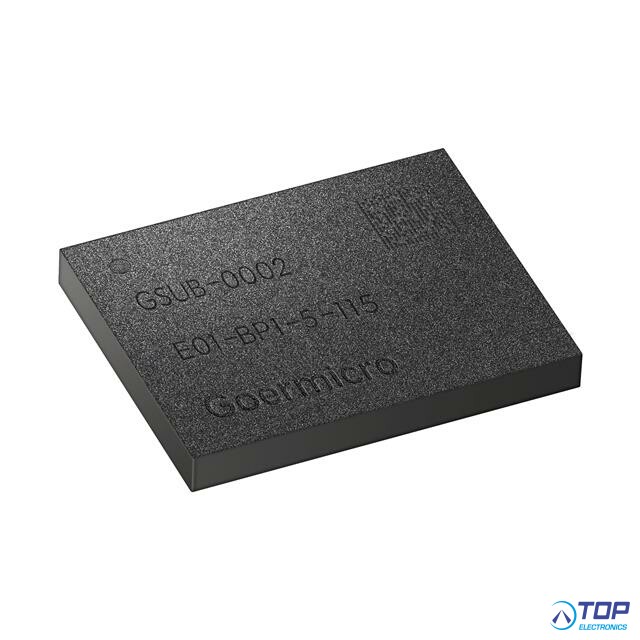

Goermicro GSUB-0002 module is based on System-in-Package (SiP) technology which
consists of a NORDIC nRF52840 Bluetooth SoC, a QORVO DW3120 UWB transceiver, a 3-
axis accelerometer, a 1.6V step-down switching voltage regulator and the matched passive
components. All these components are integrated in a tiny 97-pins 10.5x8.3x1.2 mm³ LGA
package with sputter technology to achieve EMI shielding. GSUB-0002 can be used to
scheme location application for IoT devices.
Specifications:
- UWB Transceiver: Qorvo DW3120
- Supports channel 5&9(6489.6MHz&7987.2MHz)
- Supports 2 Antennas
- BLE Transceiver：Nordic nRF52840
2.4GHz BT5
64MHz Cortex-M4
1M Flash+256KB RAM
- Supports 2-way ranging, TDoA and PDoA location schemes
- High locating precision to 10cm
- Package Size : 97-pins 10.5×8.3×1.2 mm³
- Block Diagram
- Supply Voltage Range : VDD1/VDD2/VDDMCU: 2.5V ~ 3.6V
Applications:
- Smart factory
- Smart retail
- Smart home
- Smart transport
- Smart phone
- Tag
