Product specifications
ERF4017

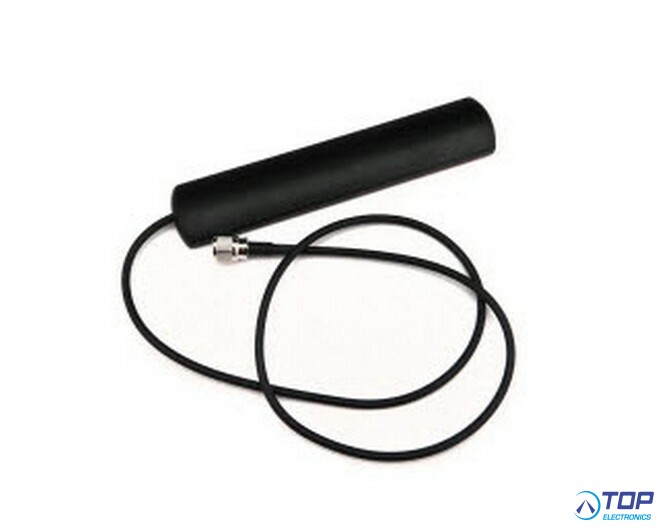

The ERF4017 antenna is an external 4G LTE antenna with a SMA male connector.
The antenna can also be used in the frequency band of 800 ~ 900 MHz / 2400 MHz.
The antenna can be used for applications such as, M2M, 2G/3G/4G , GPS/GLONASS and LoRa.
Electrical Properties
Frequency Band: 800 ~ 900 / 1575 / 1800 / 1900 / 2100 / 2400 MHz
Nominal Impedance: 50 ohm
Polarization: Horizontal
V.S.W.R: < 2.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Adhesive
Connector Type: SMA Male
Cable Length: 500 mm ± 20
Antenna Dimensions: 115.6 * 21.7 * 5.8 mm ± 0.2
Operating Temperature Range: -30°C~+70°C
Storage Temperature Range: -30°C~+70°C
