Product specifications
ERF4019

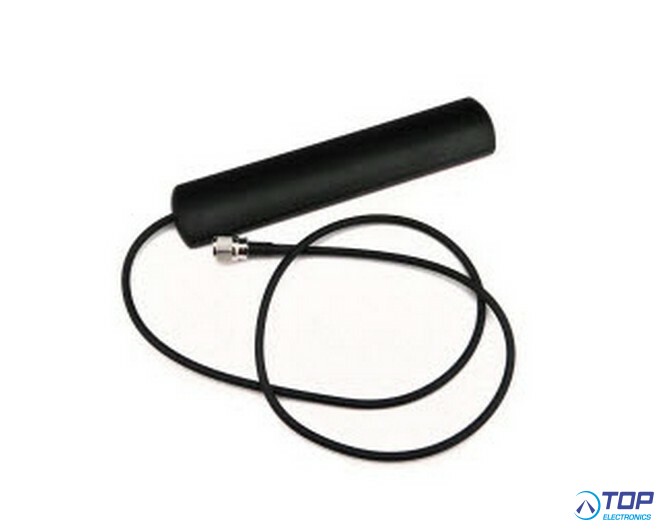

The ERF4019 is a 868MHz antenna with 5m cable and SMA Female connector.
The antenna can be used for applications such as, M2M, LoRa and Zigbee.
Electrical Properties
Frequency Band: 868 MHz
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 2.5
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Adhesive
Connector Type: SMA Female
Cable Length: 500 cm ± 1
Cable Type: RG-174 A/U
Antenna Dimensions: 115.5 * 22.2 mm ± 2
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
