Product specifications
ERF4013

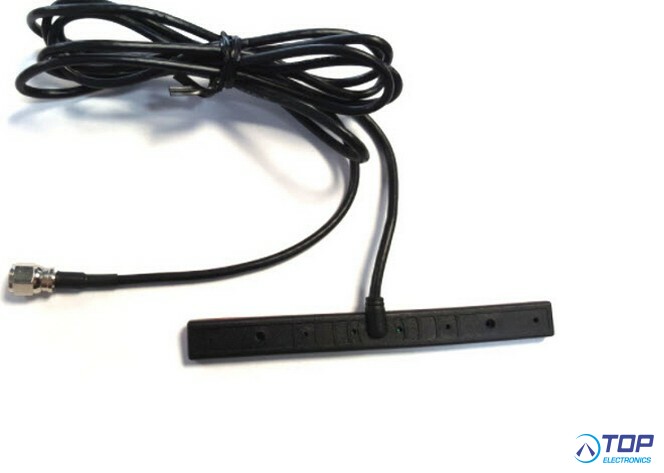

The ERF4013 antenna is a quad band antenna with a SMA Male connector.
The antenna can also be used in these frequency bands: 824 ~ 1150 MHz and 1,6 ~ 4,0 GHz.
The antenna can be used for applications , M2M , Wifi, Bluetooth, LTE, GSM and more.
Electrical Properties
Frequency Band: 824 ~ 1150 MHz / 1,6 ~ 4,0 GHz
Nominal Impedance: 50 ohm
Polarization: Horizontal
V.S.W.R: < 2.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Adhesive
Connector Type: SMA Male
Cable Type: RG174
Cable Length: 150 cm ± 2
Antenna Dimensions: 103.4 mm ±5
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
