Product specifications
ERF4014

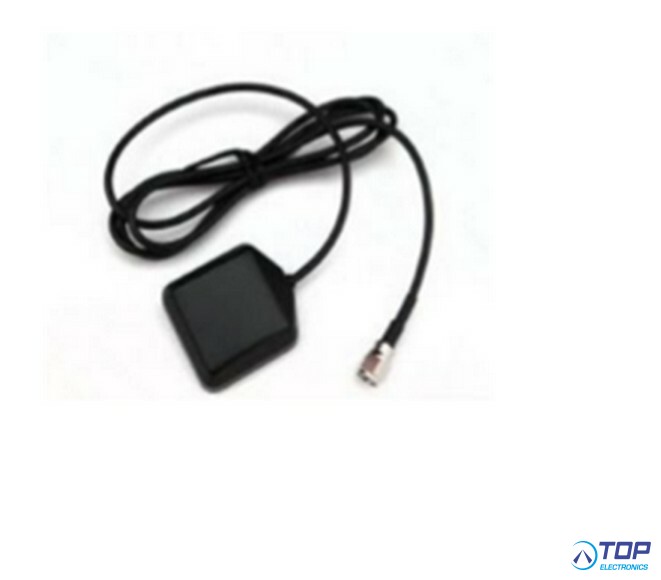

The ERF4014 antenna is a GPS antenna with a SMA Male connector.
The antenna can also be used in these frequency bands: 724 ~ 888 MHz and 925 ~ 4000 MHz.
The antenna can be used for applications such as, M2M , GPS, GLONASS and more.
Electrical Properties
Frequency Band: 724 ~ 888 / 922 ~ 4000 MHz
Nominal Impedance: 50 ohm
Polarization: Horizontal
V.S.W.R: < 2.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Adhesive
Connector Type: SMA Male
Cable Length: 1,5 m
Antenna Dimensions: 34,3 x 39,4 x 12,6 mm
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
