AMT242A-V Encoderkit, AMT242A encoder kit 12-bit single turn

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
AMT242A-V
Manufacturer / supplier
Same Sky (formerly CUI Devices)
Datasheet
View datasheet
Contact us Technical support Quotation request

Product specifications

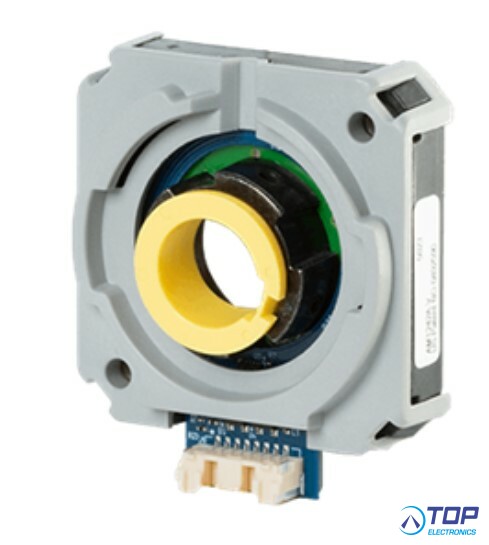

Same Sky - AMT242A-V (12-bit, radial orientation, single turn)

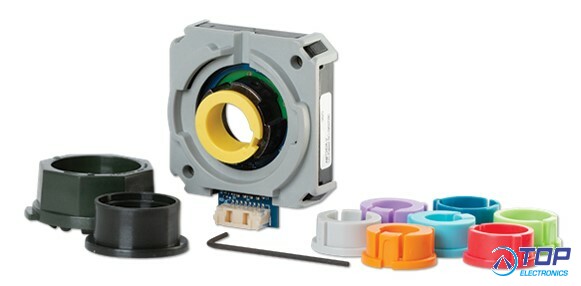

The AMT24-V all-in-one absolute encoder kit offers up to 18 configurations in one package.
The kit supports 9 shaft sizes ranging from 9 mm to 15.875 mm (5/8 in) and includes three simple mounting tools.

Coupled with the ability to set zero position via RS-485 command or Same Sky’s AMT Viewpoint GUI, the AMT24-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Features
- high speed protocol for fast low latency position data
- patented capacitive ASIC technology
- low power consumption -
- half-duplex RS485 - high speed 2 Mbps or adjustable data rate
- settable zero position
- configuration and programming via AMT Viewpoint™ software
- compact modular package with locking hub for ease of installation
- radial and axial cable connections
- -40 - 105°C operating temperature

Specifications
- Absolute Resolution : 12-bit single-turn
- Shaft (Bore) Ø (mm) : 10, 11, 12, 12.7, 13, 14, 15, 15.875, 9, 9.525
- Operating Temp. (°C) : -40 ~ 105
- Orientation : Radial
Speed, Max. (RPM) : 4000, 8000

- Same Sky product -
