Product specifications
ERF4095

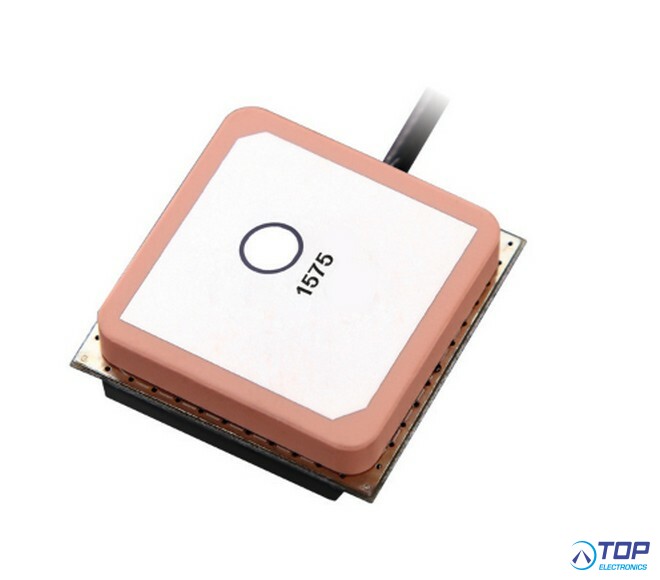

The ERF4095 antenna is an active internal GNSS antenna with a U.fl connector.
The antenna can be used for applications such as GNSS, GPS, GLONASS and BEIDOU.
Electrical Properties
Frequency Band: 1575.42
Nominal Impedance: 50 Ω
Polarization: RHCP
V.S.W.R: <1.5
Gain: 5 dBi (Zenith)
Mechanical Properties
Antenna Type: Active internal antenna
Connector Type: U.FL
Antenna Dimensions: 27*27*4 mm
Cable Length: 10cm
Cable Type: RF1.13
Mounting Method: Adhesive
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
