Product specifications
ERF4009

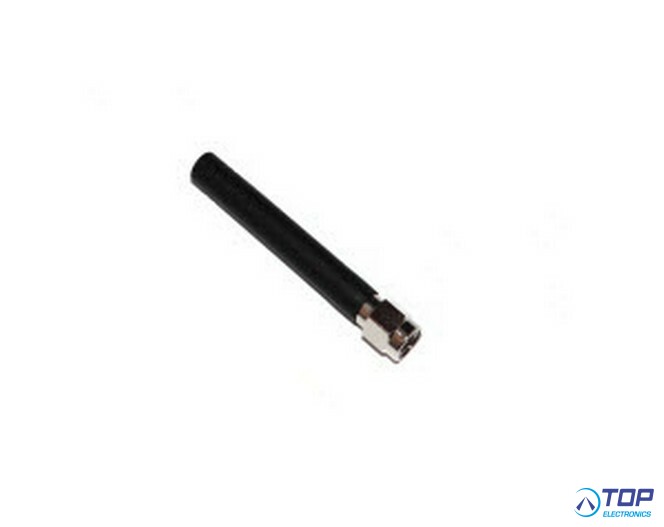

The ERF4009 Antenna is a 868 MHz antenna with a SMA (Male) connector.
The antenna can also be used in these frequency bands:1800 ~ 1900 MHz and 3800 ~ 3950 MHz.
The antenna can be used for applications , such as M2M, IoT, LTE and GSM.
Electrical Properties
Frequency Band: 790 ~ 890 / 1800 ~ 1900 / 3800 ~ 3950 MHz
Nominal Impedance: 50 ohm
Polarization: Vertical
V.S.W.R: < 3.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA Male
Antenna Dimensions: 55.9 mm ±1
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
