Product specifications
ERF4074

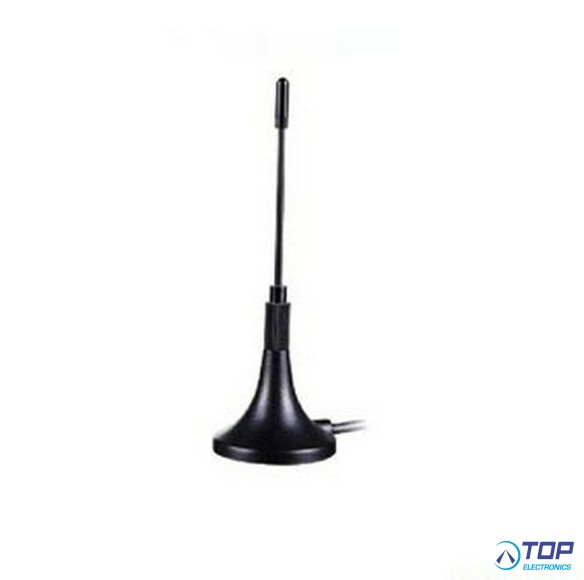

The ERF4074 antenna is a 868 MHz antenna with an SMA Male connector.
The antenna can also be used in these frequency bands: 800 ~ 900 MHz.
Antenna can be used for applications such as LoRa , Zigbee, IoT and more.
Electrical Properties
Frequency Band: 868 MHz
Nominal Impedance: 50 Ω
Polarization: Vertical
V.S.W.R: 2.0 i
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Magnet
Connector Type: SMA Male
Antenna Dimensions: 89 mm ± 5
Cable Length: 100 cm ± 2
Antenna Color: Black
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
