Product specifications
ERF4103

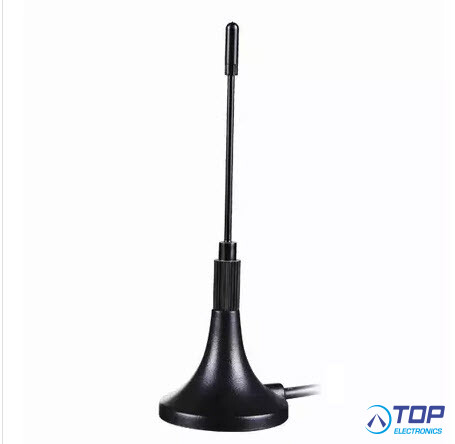

The ERF4103 antenna is a multipurpose antenna that is suitable for multiple frequencies, it uses a 1m cable and U.FL connector. The magnetic base of the antenna allows for easy placement and integration.
The antenna can be used for applications such as, M2M, 868/915MHz , cellular applications , Wi-Fi, Bluetooth and many more.
Electrical Properties
Frequency Band: 433 / 831 ~ 1200 / 1800 ~ 6000 MHz
Nominal Impedance: 50 ?
Polarization: Linear
V.S.W.R. < 2.0
Gain: 1 dBi
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Magnet
Connector Type: U.FL
Antenna Dimensions: 89 mm ± 2
Antenna Color: Black
Cable type: RG178
Cable Length: 100 cm ± 1
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
