Product specifications
2J6A15B-868

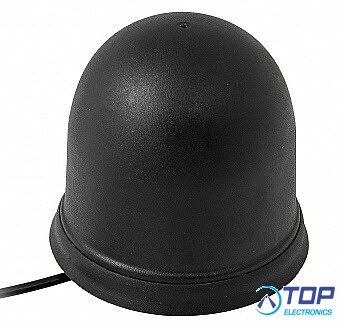

868 MHz ISM Anti-Rotation Customizable Antenna , cable 20cm
GENERAL SPECIFICATION
Connections: 1
Frequency: 868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

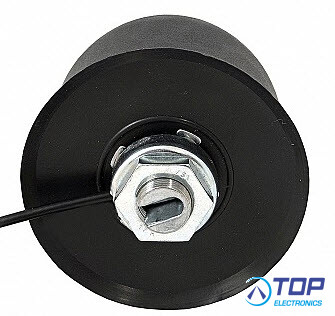

Mounting: Screw Mount
Dimensions (mm): Ø 77.3 x 65.5
Operating temperature: -40 °C to +85 °C
Certificates: IP67, IP69K, IK09
Standard colors: Black or white
CONNECTION 1
868 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870
VSWR: ~1.3:1
Efficiency (%): ~61.8
Peak Gain (dBi): ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
