Product specifications
2J7B86BGFa 5G NR Antenna

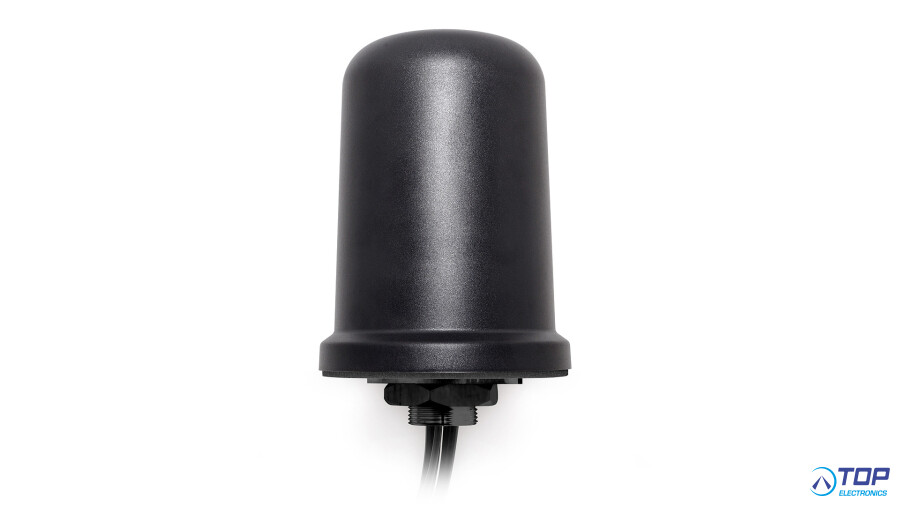

Medusa 5GNR MIMO 2.4/5.0 GHz ISM and GPS/GNSS Screw Mount Antenna
The Next Generation Heavy Duty Low-Cost 5-in-1 Solution for Intelligent Machine Control
2J Antennas is excited to introduce “The Medusa Series” 5-in-1 5GNR MIMO 2.4/5.0 GHz ISM and GPS/GNSS Screw Mount Antenna (2J7B86BGFa). This next-generation antenna integrates durability, high performance, efficiency and ultra-reliable low-latency communication (URLLC) into a low-cost and permanent solution for medical emergency, construction, agriculture and transportation industries. The 2J7B86BFGa offers 5 high-performance antennas that support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, BT, ZigBee, ISM, GPS and GLONASS standards making it the most reliable antenna on the market.
Typical applications
- 5G Networks
- Infotainment systems
- WiFi hotspot
- HD video transmission
- Dash cameras
- Connected cars
- Self-driving cars
- Fleet management
- Gateways
- Routers
- GPS-enabled IoT Applications
- Real-Time HD Video Streaming
- And others
Compatibility Standards
5GNR Cables
- 5GNR, 4GLTE, FirstNet, CBRS, LPWA
- CAT 1 2 3 4 5 6 7 8 9 10 11 12
- NB-IoT, LTE-NB1, CAT-M1, CAT-M2, WCDMA, UMTS, HSPA,
- EDGE GRPS, GSM, CDMA
2.4/5.0 Cables
- WiFi, Bluetooth, BLE, ISM
- DSRC, V2V, V2X
- Sigfox, LoRa, ZigBee, RPMA, LPWAN
GPS/GLONASS Cable
- GPS, GLONASS
- Galileo, QZSS, L1, E1
Cable 1 and 2: 5GNR MIMO
Cables 1 and 2 are designed for 5GNR devices that operate within all 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz). The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. New generation LTE 4G applications demand high data speeds, therefore high efficiency and high gain MIMO antennas are required for necessary signal to noise ratio and throughput.
Cables 3 and 4: 2.4/5.0 GHz MIMO ISM
Cables 3 and 4 are dedicated to wireless-enabled device solutions operating within WiFi, ZigBee and ISM standards. Both cables are designed with omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance making it the ideal solution for high-capacity network communications and HD video streaming.
Cables 5: GPS/GNSS
Cable 5 is designed for precision navigational applications that operate within GPS and GLONASS standards. Designed with a hemispherical radiation pattern and right-hand circular polarization allows cable 5 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput and improving resistance to signal degradation caused by inclement weather conditions. Cable 5 can maintain an active gain of 23 dB @ 3V and a noise figure parameter of 1.2 dB within the receiver system. The SAW post-filter blocks inadequate frequencies with an out of band rejection of ~32 dBc across the 1575 – 1602 MHz bands.
All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.
Installation / Environmental

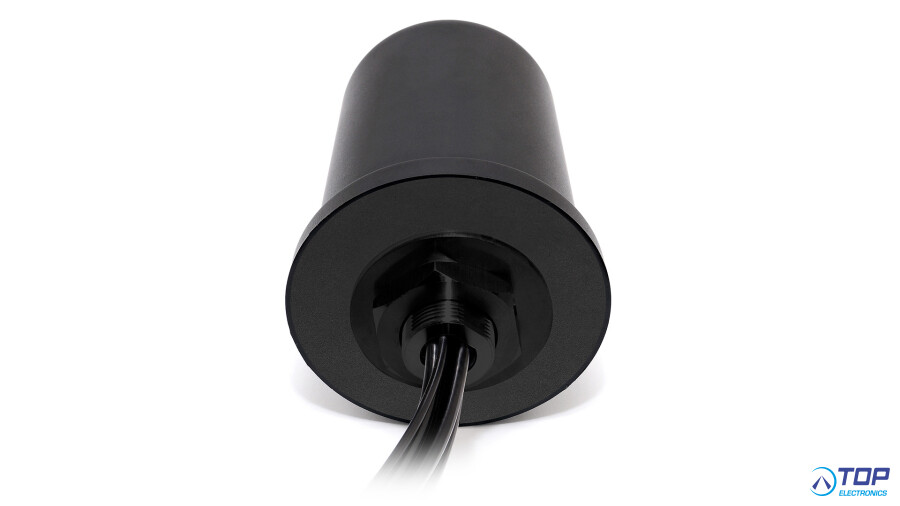

The 2J7B86BGFa is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a Zamak plastic antenna base as an alternative low-cost solution to the metal base options. This antenna is impact resistant, dust resistant and waterproof with full IP67, IP69 and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and reliable screw mount installation offer easy, permanent installations on a wide range of surfaces. We offer a wide range of alternative connectors and cables for any customization needs and our highly skilled team is available to guide our customers through any special requirements. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
CONNECTIONS (5)
2× 2.4-5.0GHz MIMO/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM GPS/GLO/QZSS/Galileo/L1 2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting Screw Mount
Dimensions (mm) Ø 96 x H 133
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69, IK09
Standard color Black
CONNECTION 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.2, ~-16.3, ~-17.9, ~-18.9
VSWR ~2.5:1, ~1.4:1, ~1.4:1, ~1.3:1
Efficiency (%) ~38.5, ~45.8, ~41.6, ~36.6
Peak Gain (dBi) ~0.3, ~3.6, ~4.7, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
CONNECTION 2
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.2, ~-15.6, ~-13.7, ~-13.2
VSWR ~2.5:1, ~1.4:1, ~1.7:1, ~1.9:1
Efficiency (%) ~42.2, ~45.3, ~43.0, ~36.7
Peak Gain (dBi) ~0.7, ~3.7, ~4.6, ~3.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
CONNECTION 3
2.4/5.0 GHz ISM
Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.5:1, ~1.4:1
Efficiency (%) ~43.4, ~26.2
Peak Gain (dBi) ~5.3, ~1.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
CONNECTION 4
2.4/5.0 GHz ISM
Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.6:1, ~1.3:1
Efficiency (%) ~41.8, ~30.9
Peak Gain (dBi) ~5.3, ~2.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
CONNECTION 5
GPS/GLONASS
Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32
