Product specifications
YC0003AA

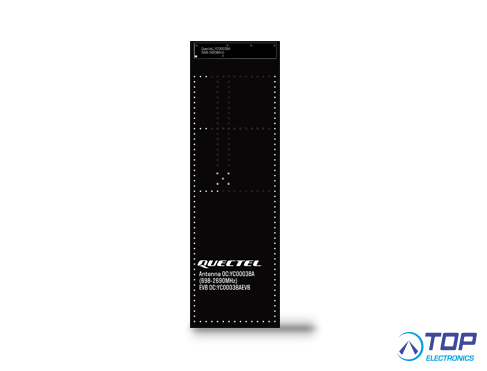

4G SMD Antenna
This wideband LTE/cellular/CDMA SMT antenna is suitable for 4G/3G/2G applications. Operating at 698-960MHz, 1695-2200MHz and 2300-2700MHz it's a high-efficiency antenna which is mounted to the device host PCB using conventional PCB reflow process. Ideal for all 4G/LTE applications, it also supports worldwide Cat M and NB-IoT frequency bands too. Supplied on tape and reel for high-volume applications. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
* Frequency band: 698–960MHz, 1695–2200MHz, 2300–2700MHz
* Peak efficiency: 79%
* Dimensions: 40mm × 7mm × 3mm
* SMD – supplied tape and reel
* RoHS and REACH compliant
Optimized for 4G/LTE/LTE-M/NB-IoT networks
High-efficiency, multiband SMD antenna
Low-profile antenna
- Quectel Wireless Solutions product -
