Product specifications
ERF4069

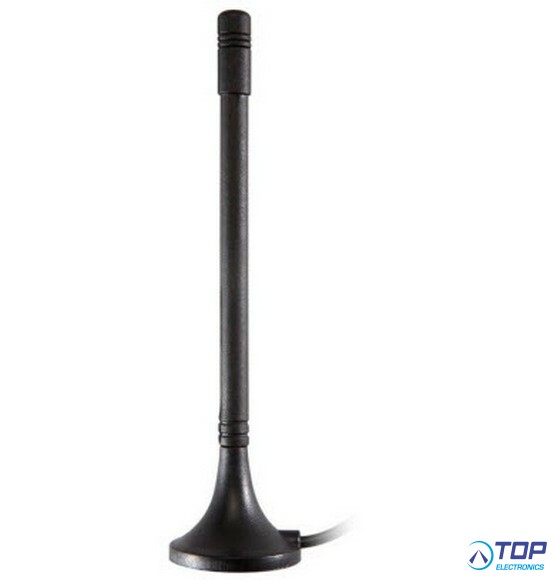

The ERF4069 Antenna is a 433 MHz antenna with a SMA (Male) connector.
The antenna can also be used at the frequency band of : 1120~1250 MHz / 1550~4000 MHz.
The antenna can be used for applications , such as M2M and 433 MHz applications , ISM and more.
Electrical Properties
Frequency Band: 433 MHz & 1120~1250 MHz & 1,55 to 4,0 GHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <2.0
Gain: 2 dBi
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA male
Antenna Dimensions: 121.0 mm ±1.0
Antenna color: Black
Cable Type: RG-174/U
Cable Length: 3.0m ± 0.1
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
