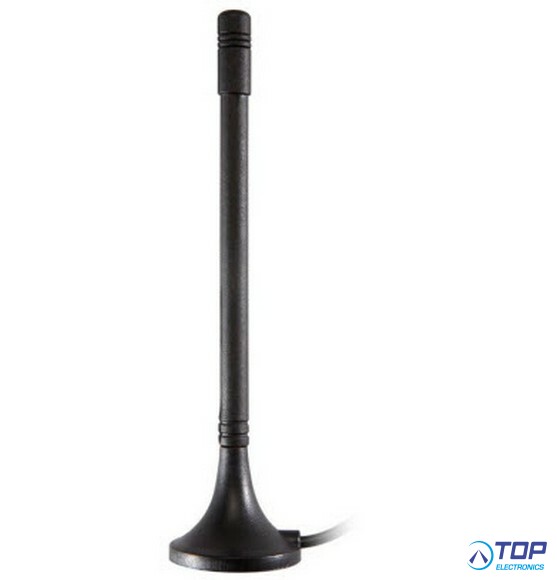

The ERF4068 Antenna is a 433 MHz antenna with a SMA (Male) connector.
The antenna can also be used at the frequency band of : ~900 MHz / 2600 MHz.
The antenna can be used for applications , such as M2M and 433 MHz applications and ISM.
Frequency Band: 433 MHz / ~900 MHz / 2600 MHz
Nominal Impedance: 50 Ω
Gain: 2 dBi
Antenna Type: External Antenna
Mounting Method: Screw type
Connector Type: SMA male
Antenna Dimensions: 75.4 x 45.2 mm ± 1
Antenna color: Black
Cable Type: RG-58/U
Cable Length: 3.0m ± 0.1
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
