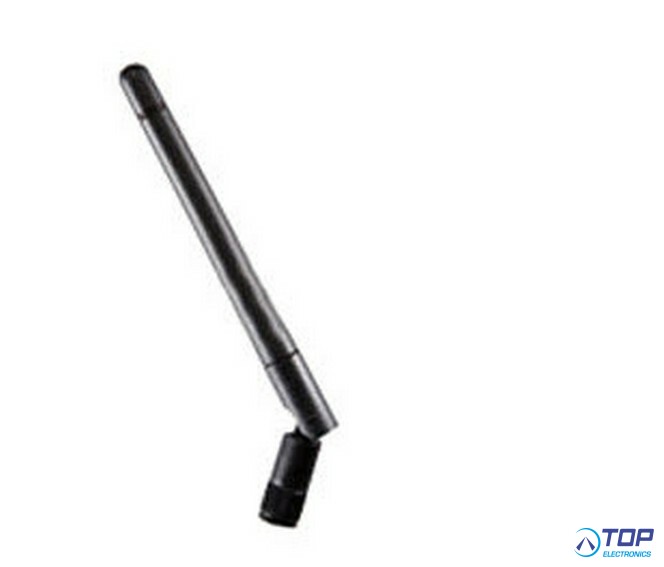

The ERF4067 Antenna is a 433 MHz antenna with a hinged design and a SMA (Male) connector.
The hinged design enables the antenna to be positioned at its most suitable angle with a maximum of 90°.
The antenna can also be used at the frequency band of : 850~950 MHz / 1600 MHz / 3200 MHz.
The antenna can be used for applications , such as M2M and 433 MHz applications and ISM.
Frequency Band: 433 MHz/ 850~950 MHz / 1600 MHz / 3200 MHz
Nominal Impedance: 50 Ω
Gain: 2 dBi
Antenna Type: External Antenna
Connector Type: SMA male
Antenna Dimensions:117 mm ±0.2
Antenna color: Black
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
