Product specifications
2JE15b

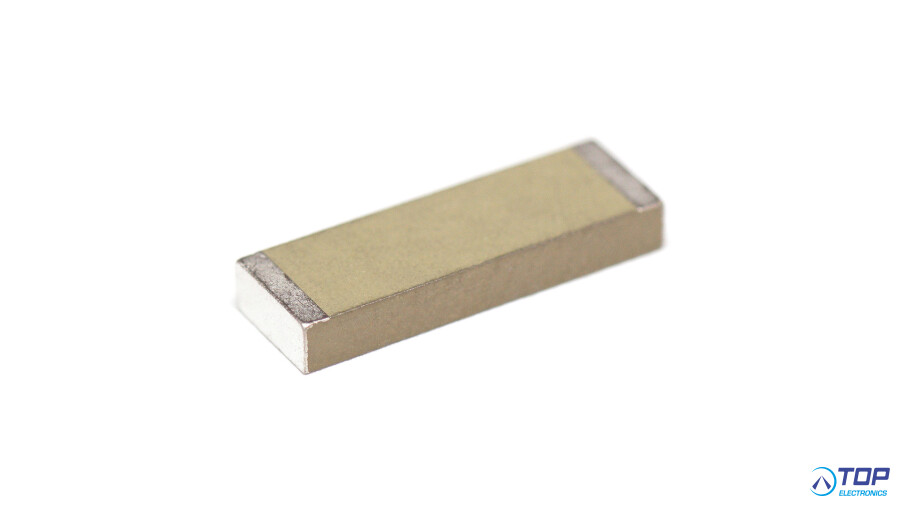

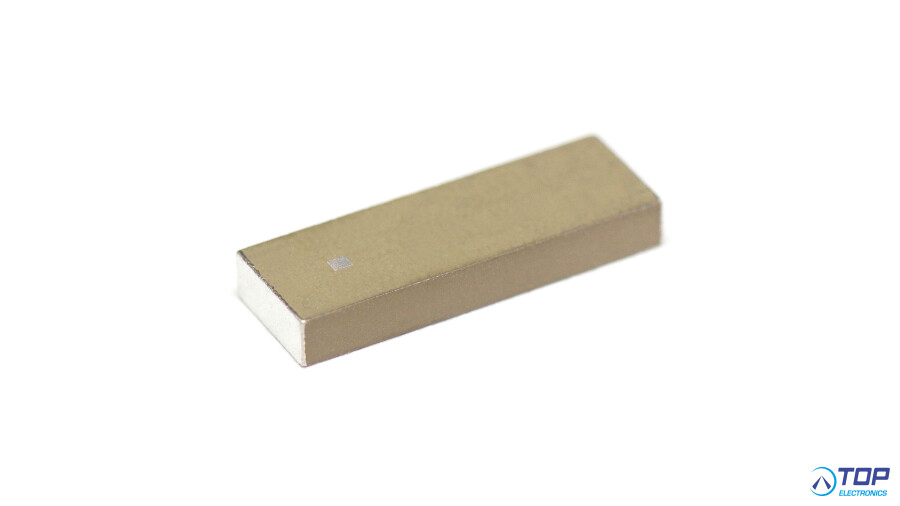

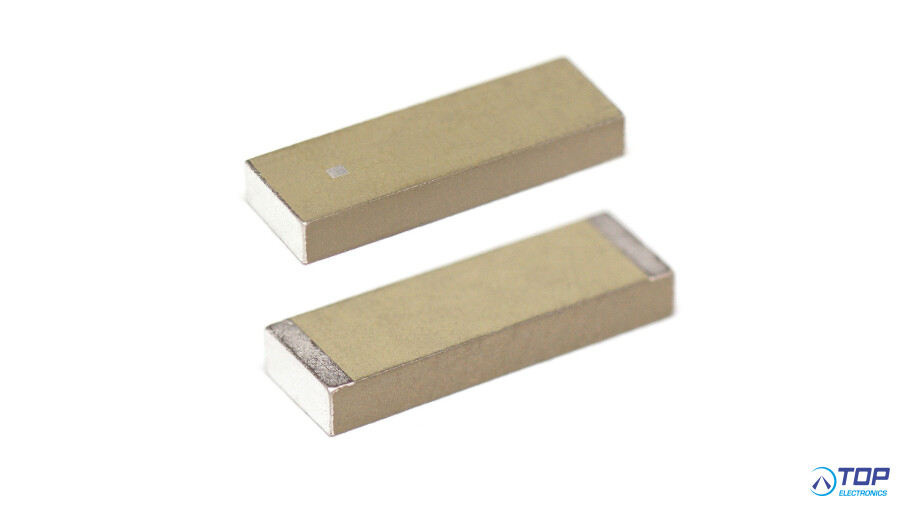

433 MHz ISM Compact Size Surface Mount Ceramic Antenna
General Specification
Frequency: 433MHz/Sigfox/LoRa/LPWA/RFID/ISM
Mounting: Surface Mount Ceramic
Dimensions (mm): 12 x 4 x 1.6
Operating temperature: -40 °C to +85 °C
Antenna and electrical specifications
433 MHz ISM
Standards: ISM, LoRa
Frequency: 433-435
VSWR: ~1.5:1
Peak Gain (dBi): ~-10.3
Impendance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
