Product specifications

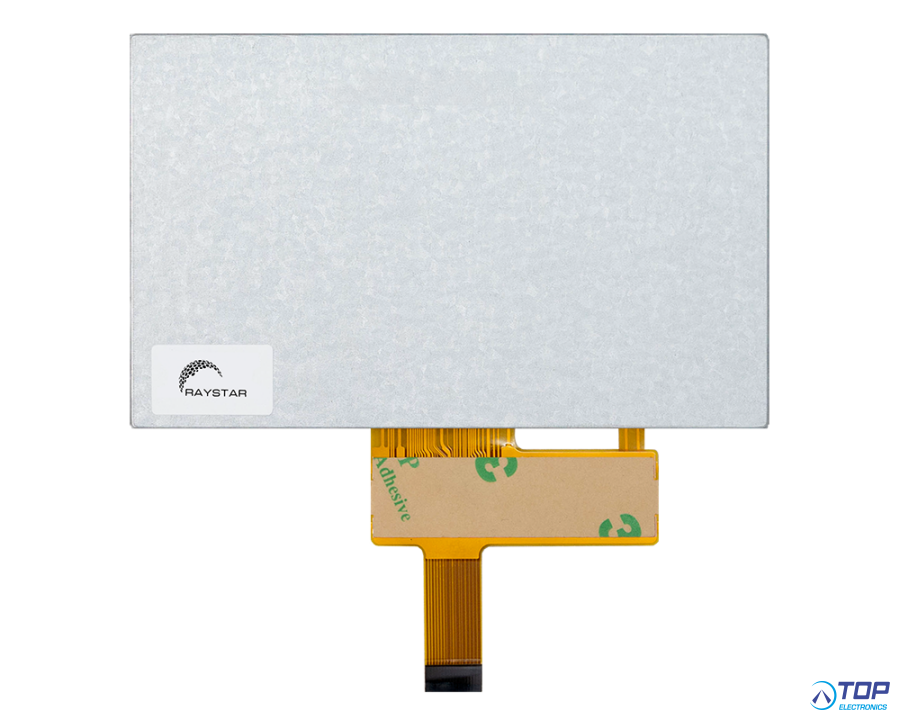

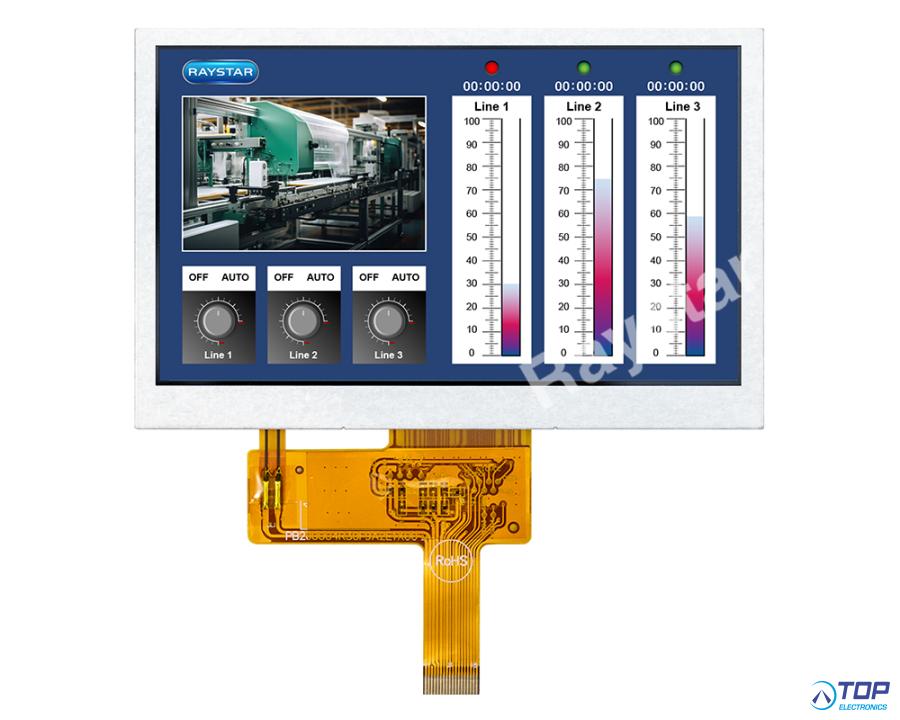

RFE430W-AWW-SNN
4.3-inch 480x272 QSPI IPS TFT LCD Display with NV3041A‑01 IC
The RFE430W-AWW-SNN is a 4.3-inch QSPI IPS TFT display delivering sharp, vibrant visuals. It features a 480 x 272 dot matrix and measures 105.5(W) x 67.2(H) mm. The active area is 95.04 x 53.856 mm with a pixel pitch of 0.198 x 0.198 mm. Its 16:9 aspect ratio fits various devices, from industrial tools to e-sports products. The NV3041A-01 driver IC powers it, paired with a 4-line data QSPI interface. This QSPI setup offers faster data transfer, lower pin count, and efficient performance, making integration smooth and reliable.
It provides an 800:1 contrast ratio and 500 nits of brightness for excellent visibility. Utilizing IPS technology, the module delivers wide viewing angles (80/80/80/80 degree), vibrant colors, and moderate response times. The RFE430W-AWW-SNN operates and stores at -30~80 ℃, thriving in extreme conditions.
General Specifications:
- TFT Series: Wide Temperature TFT, IPS TFT LCD
- Size (Diagonal): 4.3 inch
- Dot Matrix / Resolution: 480 × RGB × 272 (TFT) dots
- Module Dimension: 105.5(W) × 67.2(H) × 2.95 (D) mm
- Active Area: 95.04 × 53.856 mm
- Dot / Pixel Pitch: 0.198 × 0.198 mm
- LCD Type: TFT, Normally Black, Transmissive
- View Direction: 80/80/80/80 (IPS)
- Aspect Ratio:16:9
- Backlight Type: LED, Normally White
- Control Board: No
- TFT Driver IC: NV3041A-01
- Interface: 4 Line data QSPI
- Touch Panel: Without Touch Panel
- Surface: Glare
- Brightness: 500 cd/㎡
- Mounting Hole: No
- Operating Temperature: -30~+80 °C
- Storage Temperature: -30~+80 °C
