Product specifications
KD043WVFPA051-02

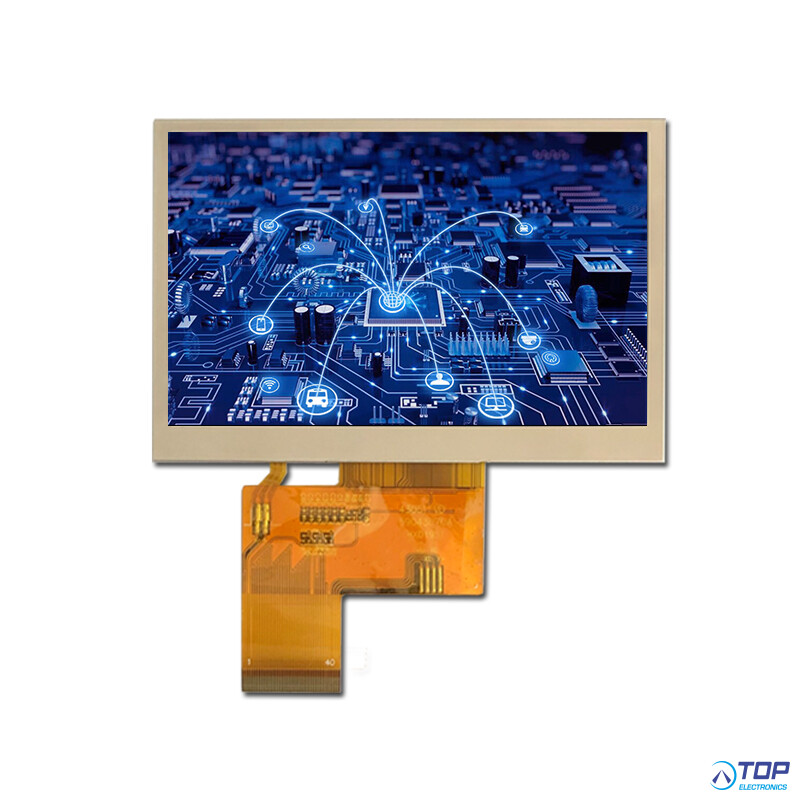

Startek 4.3" IPS Display
Specifications:
1. LCD name: 4.3 inch 800*480, full viewing angle, RGB interface, high brightness LCD panel.
2. Part No.: KD043WVFPA051-02
3. Size.: 4.3inch
4. With touch panel or not: NO
5. Touch type:
6. Display type: IPS
7. Display colors: 16.7M
8. Resolution (pixels):800(RGB)*480
9. Pixel pitch: 0.1188(H)*0.1122(V)
10. Viewing direction: ALL
11. Controller IC: ST7262
12. Display mode: IPS/ Nomally black
13. Overall size: 105.40x67.15x2.91mm
14. Viewing area:
15. Active Area:95.04(H)*53.86(V) mm
16. Luminance: 1260cd/m2
17. Contrast: 1200
18. Interface type: RGB
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED White
24. Backlight: 12 LED Vled=25.6V，Iled=60mA
25. LED Life span: 50000h
26. Certification of registration: ISO9001; IATF16949; ISO13485
