Product specifications
KD043WVFLA096-02

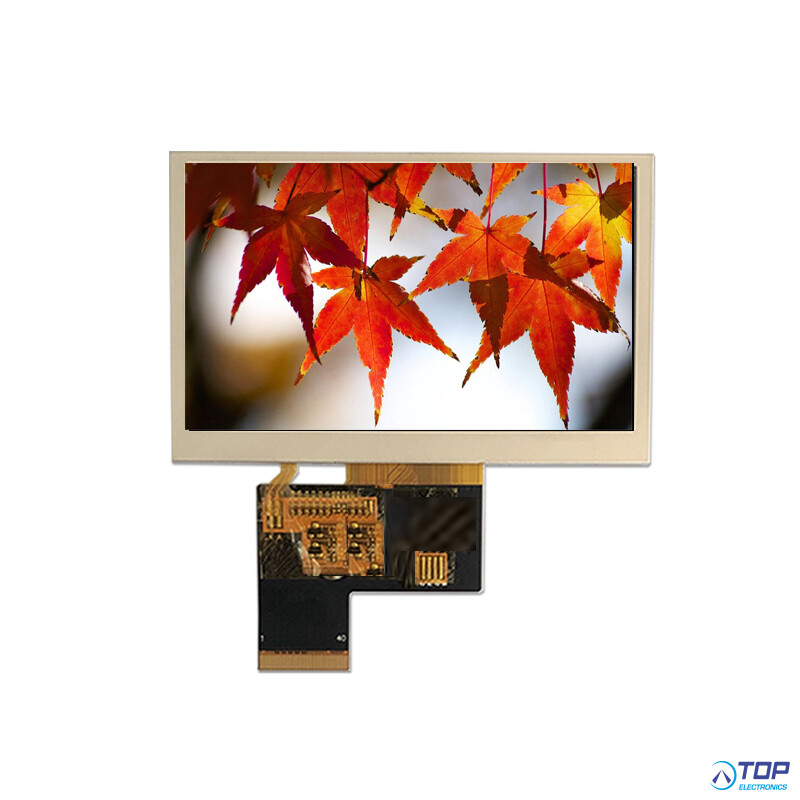

Startek 4.3" IPS Display
Specifications:
1. 800*480, ST7262, 8 bit LVDS interface TFT LCD
2. Part No.: KD043WVFLA096-02
3. Compatible part No.:
4. Size.: 4.3 inch
5. With touch panel or not: No
6. Display type: TFT
7. Display colors: 16.7M
8. Resolution (pixels): 800(RGB)*480
9. Pixel pitch: 0.1188(H)*0.1122(V)
10. Viewing direction: All
11. Controller IC: ST7262
12. Display mode: Transmissive Normally Black
13. Overall size: 105.4*67.15*2.91mm
14. Viewing area: 96.04*54.86mm
15. Active Area: 95.04*53.86mm
16. tage: 1200cd/m2
17. Contrast: 1200
18. Interface type: 8 bit LVDS
19. Pin NO.: 40pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 12 LED 3 groups in parallel, 4 in series in each group Vf =25.6V, If=60mA
25. Life span: 50000h
26. Operating temperature range: -30----85 °C
27. Storage Temperature range: -30----85 °C
28. Certification of registration: ISO9001:2015 ISO13485:2016 TS16949:2015
29. Compliant: RoHS
