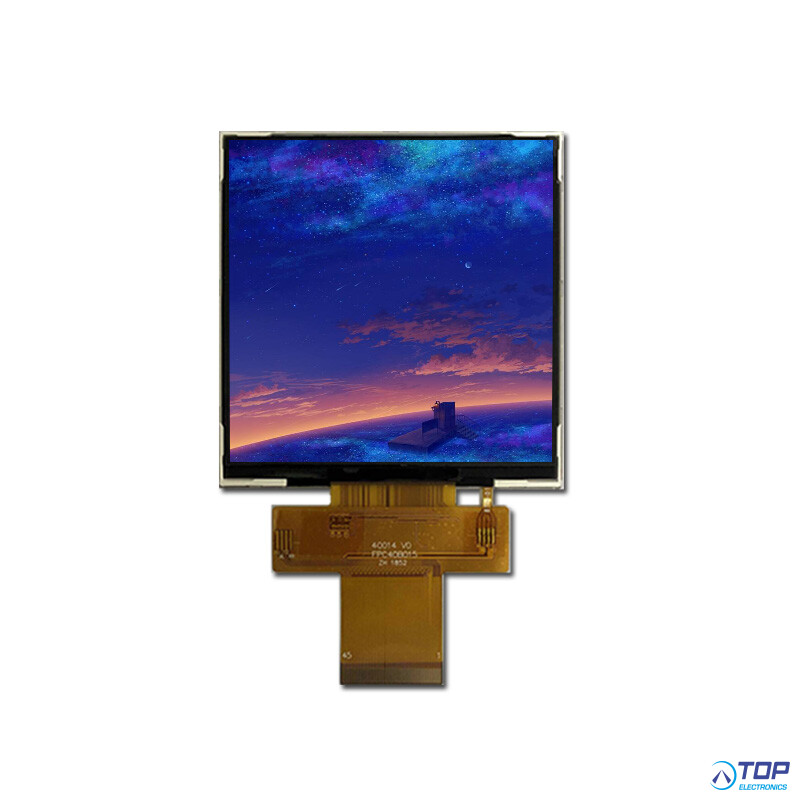

KD040WXFPD014, 4.0" IPS 480*480 1000NITS RGB

More information

Stock
5 pcs
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
KD040WXFPD014
Manufacturer / supplier
Startek
€ 24.95 excl VAT
Contact us Technical support Quotation request
KD040WXFPD014 SPEC V1.2.pdf

Product specifications

KD040WXFPD014
Startek 4.0" IPS Display

Specifications:

1. LCD name: 4.0 inch 480*480,ST7701S RGB interface, square TFT full viewing angle, high brightness IPS LCD
2. Part No.: KD040WXFPD014
3. Compatible part No.:
4. Size.:4.0 inch
5. With touch panel or not: No
6. Display type: IPS
7. Display colors: 65K/262K/16.7M
8. Resolution (pixels): 480(RGB)*480
9. Pixel pitch: 0.1497(H)*0.1462(V)
10. Viewing direction: ALL
11. Controller IC: ST7701S
12. Display mode: Transmissive Normally black
13. Overall size: 77*80*2.3mm
14. Viewing area: 72.86*71.18mm
15. Active Area: 71.86*70.18mm
16. Luminance: 1000cd/m2
17. Contrast: 800
18. Interface type:RGB
19. Pin NO.:45pins
20. Pin pitch: 0.5mm
21. Connecting type: plugging type
22. Input voltage: 3.3V
23. Backlight type and color: LED backlight/white
24. Backlight: 12 LED, 2 groups in parallel, 6 in series in each groupVled =18.8V, Iled=40mA
25. Backlight life span: 50000h
26. Operating temperature range: -30----85 °C
27. Storage Temperature range: -40----90 °C
28. Certification of registration: ISO9001:2015 ISO13485:2016 TS16949:2015
29. Compliant: RoHS

--- Startek product ---
