Product specifications
KD035VGFPD158

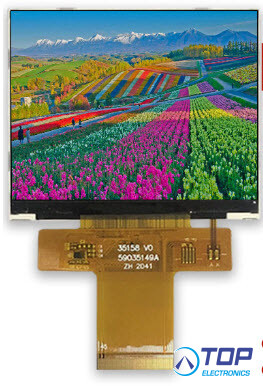

Startek 3.5" Display
Specifications:
1. LCD name: 3.5 inch 640*480, NV3052CGRB, TFT lcd dsiplay, 3SPI+16/18/24BIT RGB interface IPS LCD module
2. Part No.: KD035VGFPD158
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: 65K/262K colors
7. Resolution (pixels): 640*480
8. Pixel pitch: 0.153 (H) x 0.153 (V)
9. Viewing direction: All
10. Controller IC: NV3052CGRB
11. Display mode: Transmissive Normally white
12. Overall size: 74.38*62.35*2.43mm
13. Viewing area:
14. Active Area: 70.08*52.56mm
15. Luminance: 750nits
16. Contrast: 800
17. Interface type: 3SPI+16/18/24BIT RGB
18. Pin NO.: 45pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight White
23. Backlight: Six in series and two in parallel If=35-40mA Vf =19.2V
24. LED Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80°C
27. Certification of registration: ISO9001 ISO13485 TS16949
28. Compliant: RoHS
