Product specifications
ERF4052

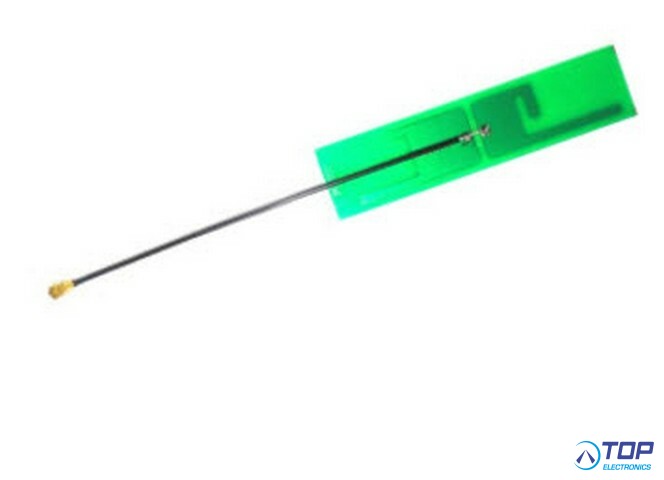

The ERF4052 antenna is internal 2.4 GHz antenna with an U.FL connector.
The antenna can also be used in the frequency range of 2400 ~ 2480 MHz.
The antenna can be used for applications , such as M2M, Wifi, Bluetooth and Zigbee.
Electrical Properties
Frequency Band: 2000 ~ 2280 / 2400 ~ 2560 / 3244 ~ 4000 MHz
Nominal Impedance: 50 Ω
Polarization: Linear
V.S.W.R: <2.0
Gain: 2 ~ 3dBi
Mechanical Properties
Antenna Type: Internal Antenna
Connector Type: U.FL
Cable Type: 10 cm ± 0.5
Antenna Dimensions: 16.5 * 66.5 * 0.8 mm
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
