Product specifications
ERF4002

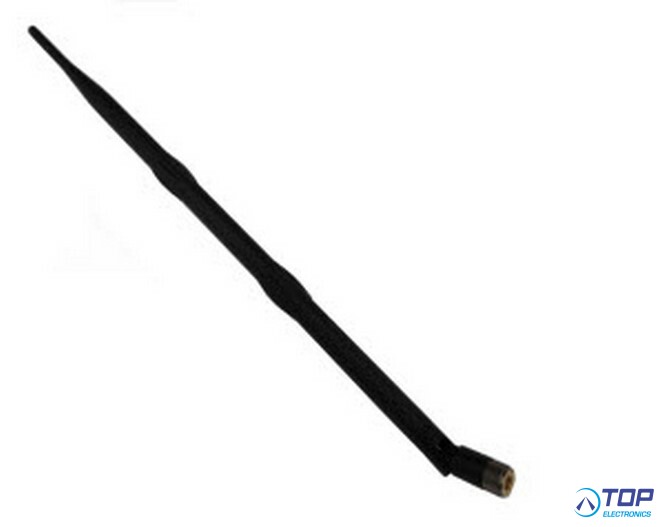

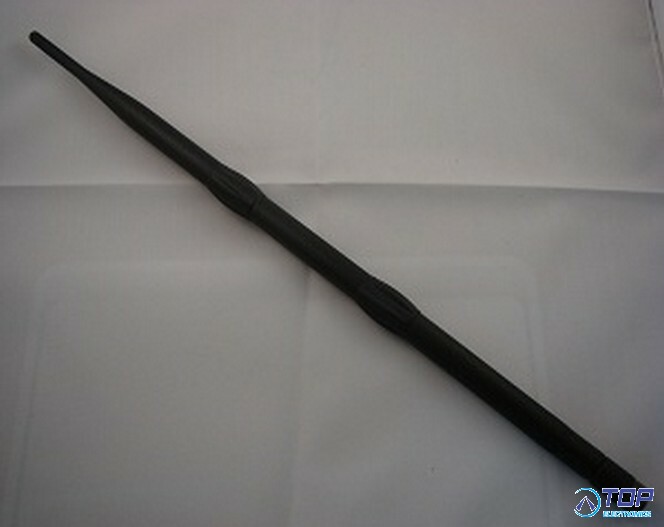

The ERF4002 Antenna is a 2,4 GHz Wi-Fi antenna with a hinged design and a RP-SMA (Male) connector. The hinged design enables the antenna to be positioned at its most suitable angle with a maximum of 90°. The antenna can be used for applications such as, Wifi Hotspots and Wireless communication.
Electrical Properties
Frequency Band: 2.4 GHz
Nominal Impedance: 50 ohm
Polarization: Vertical
V.S.W.R: 2.0
Mechanical Properties
Antenna Type: External Antenna
Mounting Method: Screw Type
Connector Type: SMA Male Reversed Polarity
Antenna Dimensions: 104mm ±3
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
